pump pressure switch

Quantity:
SKU: 6038818316
Model: EPC-5.1

{{ variable.name }}

{{ value.name }}

Product Specification

Typepump pressure switchModelEPC-5.1
ParamsRated Voltage:220-240V / 110-120V Power Frequency:50/60Hz Max. Power:0.55kW / 1.1kW /1.5kW / 0.75kW Starting Pressure Setting:1.2bar,1.5bar,2.2bar Max. Working Pressure Connection Thread:G1",NPT1" Protection Rating:IP44 Max. Working Temperature:55℃Materialplastic,metal
Applicable IndustryAgriculture irrigation, Water treatment,Construction

Feature

Built-in run-dry protection Triple voltage 110V, 230V or 110-240V Built-in check valve Maintains constant pressure at constant flow Simple installation saves time and space Can be used with surface or submersible pumps Optional adjustable & non-adjsutable Adjsutable starting pressure :1.2-2.5bar EPC-5A with smart program socket built-in to make the wiring easier and faster

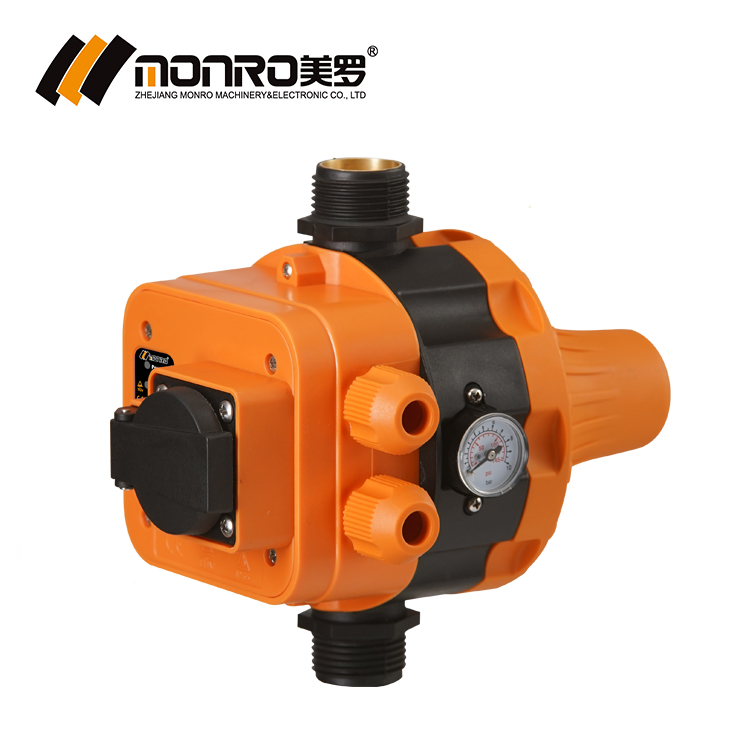

EPC-5.1 adjustable

EPC-5.1 adjustable


EPC-5.1

EPC-5.1


EPC-5.1 pressure gauge

EPC-5.1 pressure gauge


EPC-5.1 with pump

EPC-5.1 with pump


EPC-5.1

EPC-5.1
