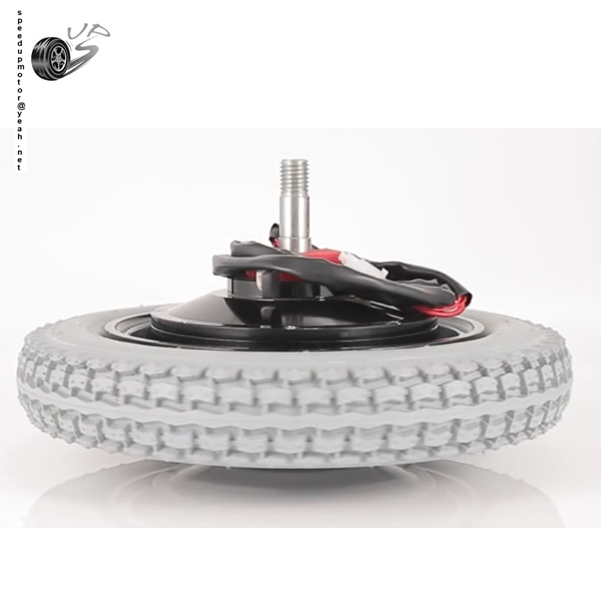

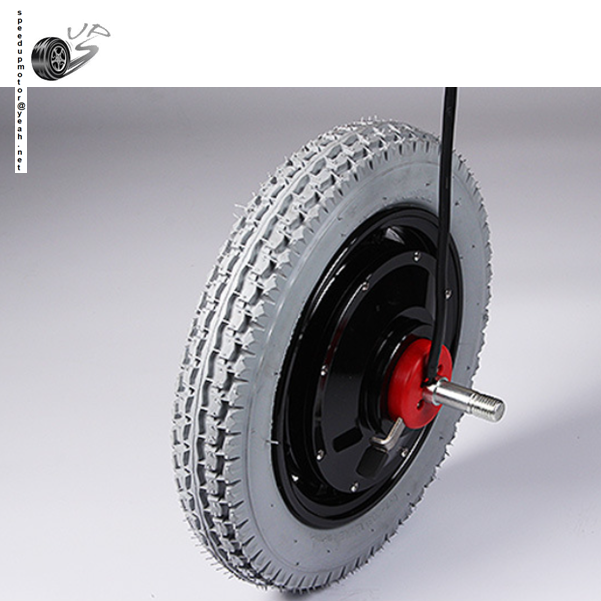

24V 200W 12Inch Wheelchair Hub Motor with EMB Brake
The 12Inch Wheelchair Hub Motor model 6DY-A4 is a compact and efficient brushed DC motor designed for mobility equipment. Featuring a 305mm solid tire, 24V/200W power, and integrated EMB electromagnetic brake, it delivers reliable low-speed performance with high torque, making it suitable for electric wheelchairs, mobility scooters, and medical carts. CE, EMC, and RoHS certified.
Key Selling Points
Built-in EMB Electromagnetic Brake: Integrated electromagnetic clutch brake ensures safe stopping and support for manual clutch, enhancing operational safety for users.
High Torque at Low Speed: Gear ratio 1:40 provides bigger starting torque and wide speed range, ideal for climbing and load carrying.
Rare Earth NdFeB Magnets: Permanent magnets offer high power volume ratio and high linearity, improving efficiency.
Compact Design: Small volume with high efficiency, easy to integrate into wheelchairs, scooters, and hospital carts.
Customizable Options: Available with 36V/48V, double or single shaft, custom shaft sizes, and tailored performance profiles to meet specific OEM needs.
Wear-Resistant Gear System: High-strength gear shifting system ensures durability in frequent start-stop applications.
Technical Specifications
Model
6DY-A4
Type

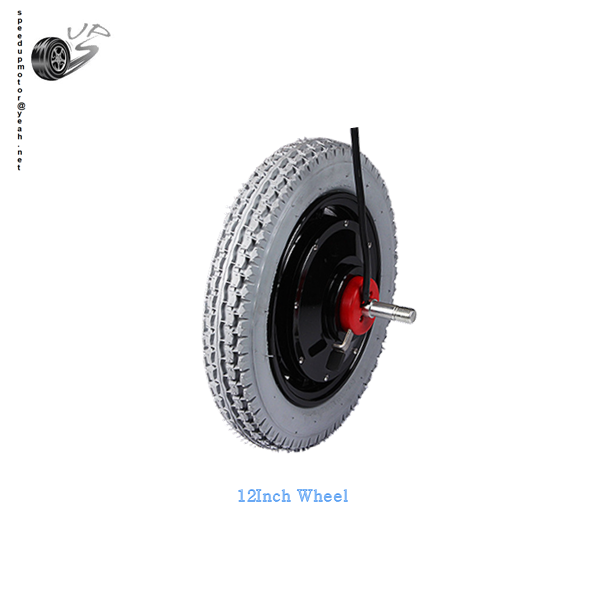

12Inch Wheelchair Hub Motor Single Shaft Brushed DC EMB Brake
Diameter
305mm (12 inch) solid tire
Voltage
24V DC (also available 36V/48V)
Power
200W
Speed
70 RPM
Gear Ratio
1:40
Shaft
Single shaft (double shaft optional)
Brake
EMB electromagnetic brake with manual clutch
Certifications
CE, EMC, RoHS
Models and Options
This hub motor is available in multiple configurations:
Voltage options: 24V, 36V, 48V
Shaft options: single shaft or double shaft
Custom shaft sizes and profiles
Tailored performance profiles
Special OEM configurations
Materials and Structure
Constructed with die-cast aluminum alloy housing, copper windings, rare earth NdFeB permanent magnets, and rubber solid tire. The printed armature/winding/circuit design ensures high reliability and performance.
Applications
Widely used in electric wheelchairs, mobility scooters, electric scooters, medical chairs, hospital carts, robots, and other mobility equipment. Also applicable in floor scrubbers and electric shopping carts.
Customization
We support custom voltage, power, shaft configuration, and performance tuning. OEM and ODM services available. MOQ: 2 pieces. Delivery: EXW/FOB/CIF. Payment: 100% in advance.
Case Study
Our 12-inch hub motor has been supplied to a wheelchair factory in Netherlands, Germany, Australia, Denmark, and USA, with 3,000 pieces over 10 years. The built-in brake and low-speed commutation performance ensure stable operation.
FAQ
Q: What is the minimum order quantity?
A: The MOQ is 2 pieces.
Q: Can the motor be used in wet or humid environments?
A: Yes, the motor is designed for humid environments with condensation protection and EMI grounding.
Q: What brake options are available?
A: The motor features an EMB electromagnetic brake with manual clutch, providing safety and control.
Q: Can I get a custom shaft design?
A: Yes, custom shaft sizes and profiles are available.
Q: What is the delivery time?
A: Please contact us for specific delivery times based on order quantity.
Q: Does the motor come with CE certification?
A: Yes, this motor is CE, EMC, and RoHS certified.
