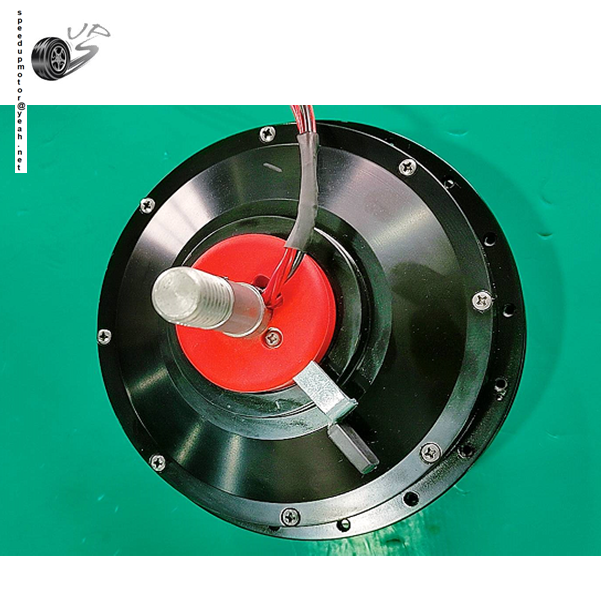

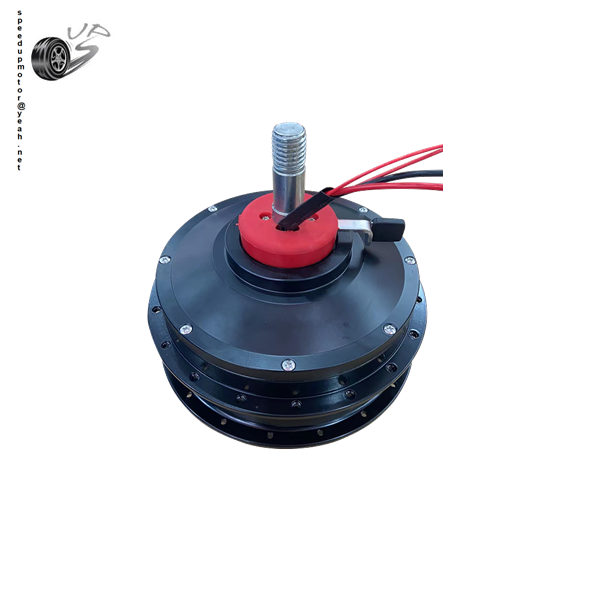

Model 6DY-A is a brush DC hub motor rated at 24V and 300W, delivering a rated torque of 40Nm. Its spoke wheel design integrates an electromagnetic brake for reliable stopping and safety. With a gear ratio of 1:40, this universal wheel motor is designed for low-speed, high-torque applications such as mobility scooters, electric wheelchairs, and dustcarts. Customization of shaft size and operating voltage is available.
| Model | 6DY-A |
|---|---|
| Motor Type | Brushed DC hub motor, spoke wheel |
| Rated Voltage | 24V |
| Rated Power | 300W |
| Rated Speed | 70 rpm |
| Rated Torque | 40 Nm |
| Gear Ratio | 1:40 |
| Brake | Electromagnetic brake |
| Axis Length | Customizable |
| Net Weight | 7.5 kg |
| Loading Capacity | 80-300 kg |
The 6DY-A motor can be configured with different shaft lengths, dual-shaft outputs, and voltage ratings (36V/48V also available). Custom performance profiles are available for specific applications.
Crafted from aluminum alloy, copper, and magnet materials, ensuring durability and efficient heat dissipation. The spoke wheel construction provides strength while the gearbox uses high-strength, wear-resistant materials for long life.
This motor is widely used in mobility scooters, electric scooters, wheelchairs, medical chairs, hospital carts, robots, and garbage trucks.
We offer customized operating voltages, shaft sizes/profiles, performance profiles, and special OEM configurations to meet your specific requirements.
Our electric scooter factory client in Europe has purchased over 2,000 units of this motor for wheel drive applications, reporting 10 years of stable operation with the low-speed high-torque and electromagnetic brake functionality.
Our MOQ is 2 pieces.
Delivery is typically 15-30 days depending on order quantity and customization, but this can be discussed upon inquiry.
Yes, our wheelchairs have used this motor for over 3,000 units with stable operation.
The motor is CE, EMC, and RoHS certified.
Yes, the axis length is customizable.
We require 100% payment in advance.
For more information or to place an order, contact us at speedupmotor@outlook.com or via WhatsApp +86-18151710527.
