Product Summary

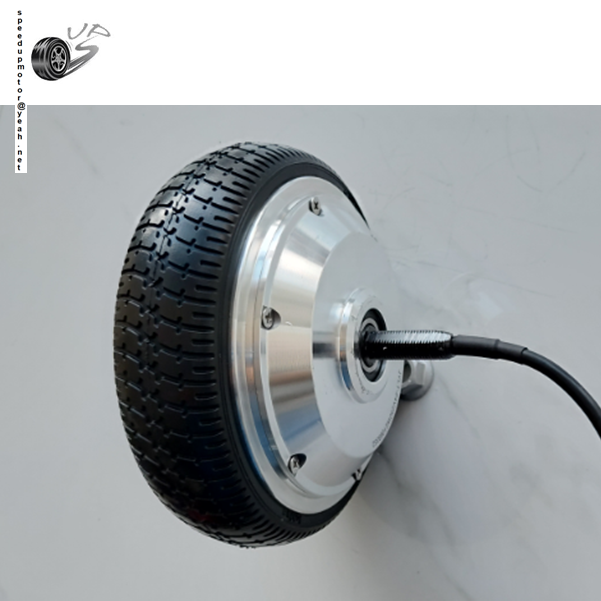

This brushless hub motor model SA05-6 features a 6.5-inch solid tire (170mm diameter) and integrates a 24V BLDC motor with 200W rated power and 150rpm rated speed. The outer rotor design with rare earth NdFeB magnets ensures high efficiency and long service life. With an IP54 waterproof rating and electronic brake (EABS), it is ideal for medical equipment such as electric wheelchairs, hospital beds, and companion push support devices.

Key Selling Points

• Rated 200W at 24V: Delivers consistent power for mobility assistance, enabling smooth operation on ramps and uneven surfaces. (source: 24V, 200W in product parameters)
• Low speed high torque: 150rpm rated speed provides controllable acceleration and high torque (15Nm) for safe start-stop in patient transport. (source: Rated torque 15Nm)
• IP54 waterproof rating: Protects motor from humidity and water splashes, suitable for outdoor and indoor use. (source: Waterproof rating:IP54)
• Electronic brake (EABS): Enhances safety with instant response, preventing rollback on inclines. (source: Brake:Electronic brake(EABS))
• Custom shaft availability: Allows tailoring to specific wheelchair axle sizes, with single or double shaft options. (source: Can be with double/single shaft, Axis length:Custom)
• CE, EMC, RoHS certified: Meets EU requirements, facilitating market entry. (source: certification assets and CE in description)

Technical Specifications

Models and Options

The SA05-6 is available with different voltages (24V, 36V, 48V) and power ratings (100W-500W). Shaft configurations can be single or double, and axis length is customizable to meet specific wheelchairs' requirements.

Materials and Structure

Built with an aluminum alloy housing, the motor uses high-grade copper windings and rare earth magnets for performance. The solid rubber tire provides flat-free operation and durability for medical environments.

Applications

Designed for mobility scooter, electric scooter, wheelchair assistance, medical chair, AGV, robot, and hospital transport bed applications.

Customization

Custom axis length, voltage, power, speed, and shaft options are supported. OEM and ODM production types are welcome. Please contact us with your specific requirements.

Case Study

A wheelchair manufacturer in the Netherlands, Germany, Australia, Denmark, and the US has been using this wheel motor for their electric wheelchair wheels for over 10 years. The highlight is the built-in electromagnetic clutch brake supporting manual clutch, ensuring low-speed running and good commutation ability. Over 3000 units have been supplied.
