Cantilever Climbing Formwork FWK-CB 240
Self-climbing formwork for high-rise concrete structures
Product Summary
The FWK-CB 240 Cantilever Climbing Formwork is a self-climbing system designed for continuous construction of high walls and dam structures. It utilizes an embedded anchor system to support the formwork and working platform, eliminating the need for additional scaffolding. The system is adjustable to fit varying wall slopes and curvatures, and its high rigidity ensures stable operation and excellent concrete surface quality. With a bracket height of 10-15 meters and a 900mm wide operating platform, it enhances safety and efficiency on site.
Key Selling Points
- Self-Supporting: No bottom support brackets required, reducing material and labor costs.
- Continuous Lifting: Enables continuous concrete pouring at height, accelerating construction schedules.
- High Structural Rigidity: Provided by steel construction, ensuring stability and safety.
- Adjustable to Slopes: Can be adjusted to fit dam slope and curved surfaces, increasing versatility.
- Excellent Surface Finish: Delivers a smooth concrete finish, reducing post-processing work.
- Certified Quality: Manufactured under ISO 9001:2015 quality management system.
Technical Specifications
| Property | Value |
|---|---|
| Model | FWK-CB 240 |
| Bracket Height | 10-15 meters |
| Operating Width | 900 mm |
| Material | Steel |
| Protection Height | Verified per project |
Models and Options
The FWK-CB 240 is available in various configurations to suit different wall heights and loads. Standard options include varying platform widths and optional protective screens. Consult our engineering team for customized sizing.
Materials and Structure

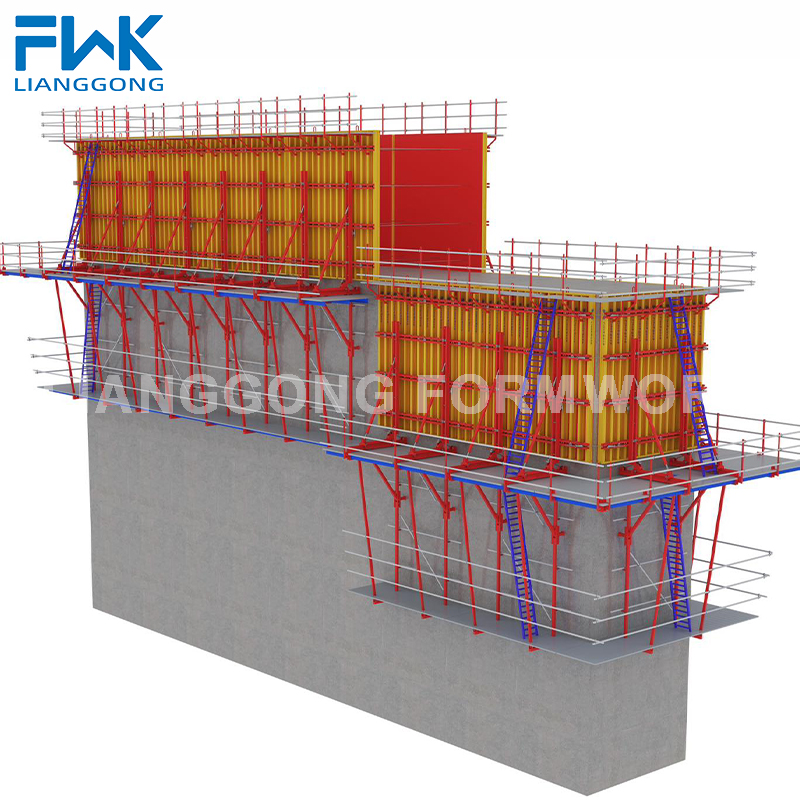

Constructed from high-strength steel, the system consists of an anchor system, formwork panel, bracket (including tripod, main waler, and diagonal brace), suspended platform, and retrusive device. The steel components are designed for durability and reuse, with a film-faced plywood facing surface for optimal concrete finish.
Applications
Ideal for high and steep dam construction, retaining walls, bridge piers, and other large concrete structures. It is particularly suited for projects requiring continuous vertical alignment and high safety standards.
Customization
Custom dimensions, platform layouts, and finishes are available upon request. Our technical team can adapt the system to your specific project requirements.
FAQ
What is the maximum bracket height?
The FWK-CB 240 offers a bracket height of 10-15 meters, configurable based on project needs.
Does it require scaffolding?
No, the cantilever design eliminates the need for bottom scaffolding, using an anchor system for support.
Can it be used for curved structures?
Yes, the system is adjustable to fit slopes and curved surfaces, making it versatile for dam geometries.
What is the operating platform width?
The standard operating platform width is 900mm, providing adequate working space.
Is the system reusable?
Yes, the modular steel components are designed for high reuse across multiple pours and projects.
