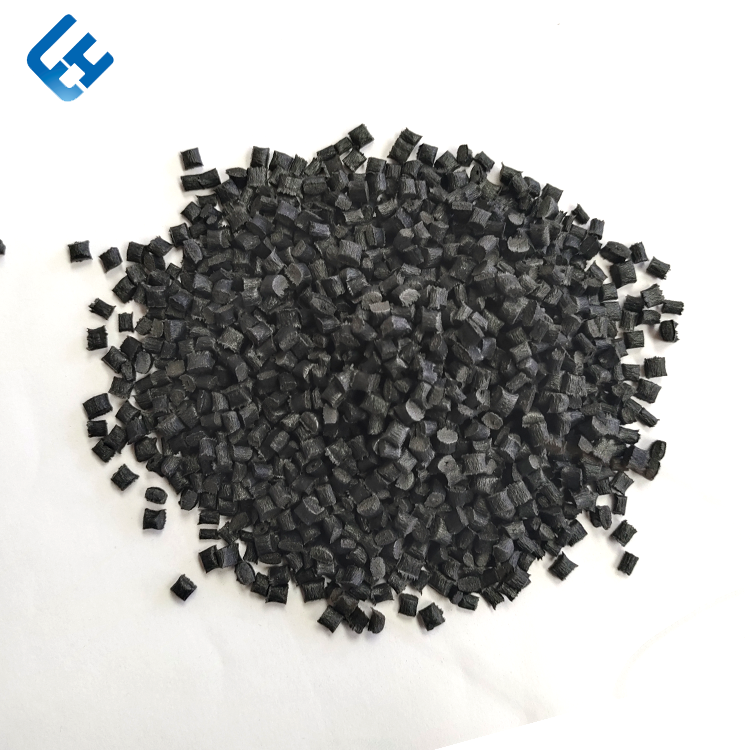

Modified PA66 GF30 Flame-Retardant Glass-Fiber-Reinforced Nylon 66 Compound

Quantity:
SKU: 8586190128
Model: PA66-WHRG30A

{{ variable.name }}

{{ value.name }}

Product Specification

TypeFlame-retardant PA66 GF30ModelPA66-WHRG30A
ParamsGlass fiber 30% (grade designation). Tensile strength 125 MPa (ISO 527-2). Flexural strength 185 MPa (TDS cites ISO 527-2); flexural modulus 6800 MPa (ISO 178). Notched Izod 15 kJ/m2 (ISO 179). HDT 180 C (ISO 75-2/B). Density 1.52 g/cm3 (ISO 1183). Shrinkage 0.5% (ISO 2577). TDS states UL 94 V-0, but specimen thickness is not stated; confirm current grade-specific report before product approval. Typical values only.MaterialModified PA66 with glass fiber and flame-retardant additive
Applicable IndustryElectrical and electronic housings; structural injection-molded parts requiring flame-retardant material screening. Validate final assembly requirements.

Feature

PA66 glass-fiber reinforcement and TDS-listed V-0 classification support preliminary material selection. Check tested specimen thickness, color, current TDS and finished-part compliance before approval. Source TDS grade: PA66 WHRG30A.

PA66 GF30 FR(V0)

PA66 GF30 FR(V0)
