Single Cylinder Hydraulic Cone Crusher

Quantity:
SKU: 2753084327
Model: Customized-J-03

{{ variable.name }}

{{ value.name }}

Product Specification

TypeSingle Cylinder Hydraulic Cone Crusher for Medium and Fine CrushinModelCustomized-J-03
ParamsProcessing Capacity: 34–2,595 t/h Maximum Feeding Particle Size: 130–500 mm Closed Side Setting (CSS): 4–120 mm Maximum Installed Power: 90–750 kW Crusher Weight: 5.3–85 tonsMaterialHigh-strength cast steel / high-manganese steel
Applicable IndustryMining / Quarrying / Aggregates / Mineral Processing

Feature

High Capacity and Excellent Particle Shape: Optimized crushing stroke, crushing speed, and laminated crushing principle increase production capacity by 35%–60% while delivering excellent cubical product shape. Extended Liner Service Life: Optimized crushing chamber design maintains a stable discharge opening and extends liner service life by up to 20%. Automatic Hydraulic Adjustment and Cavity Clearing: Hydraulic control system automatically adjusts the discharge opening and enables quick cavity clearing to reduce downtime after overload.

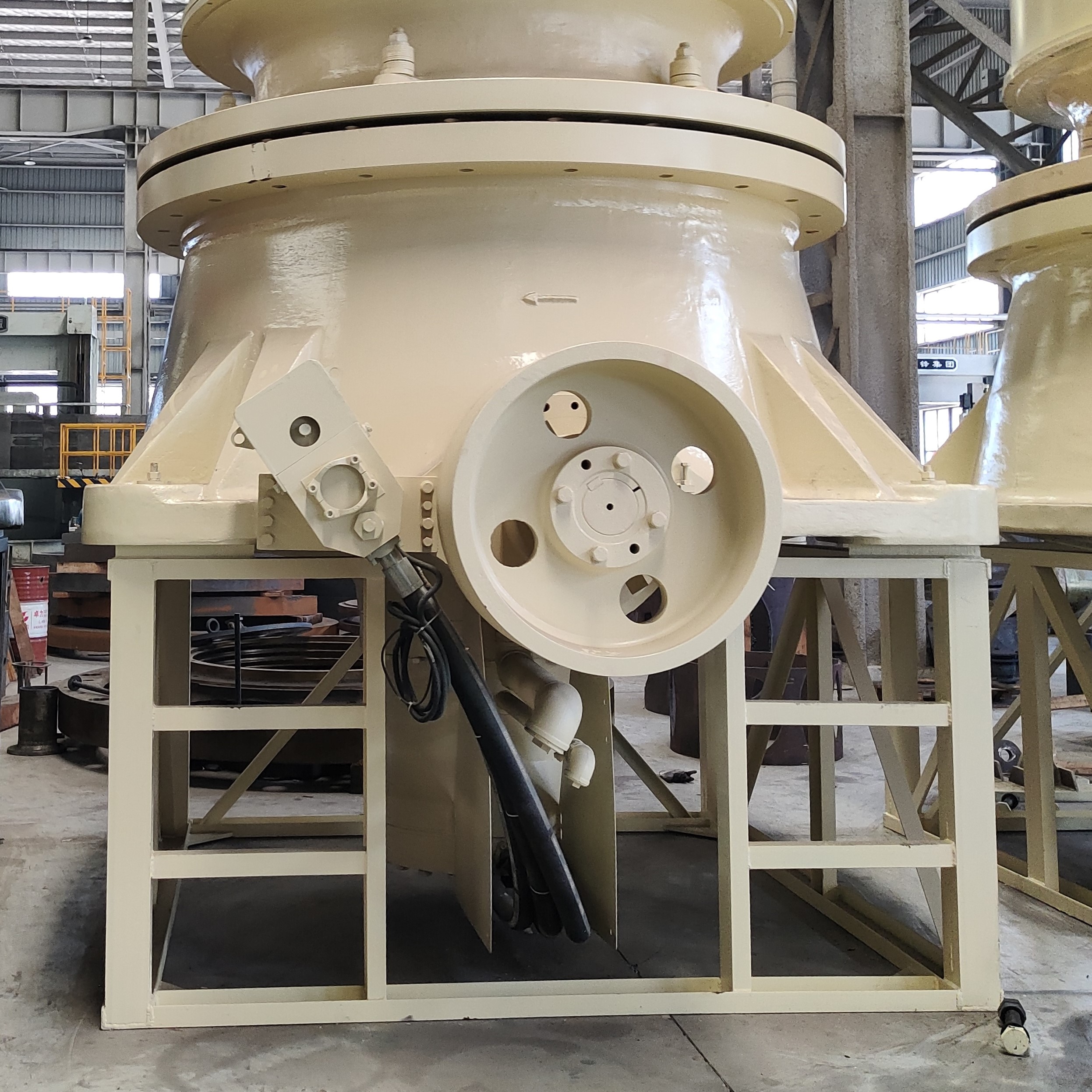

Single Cylinder Hydraulic Cone Crusher Front View

Single Cylinder Hydraulic Cone Crusher Front View

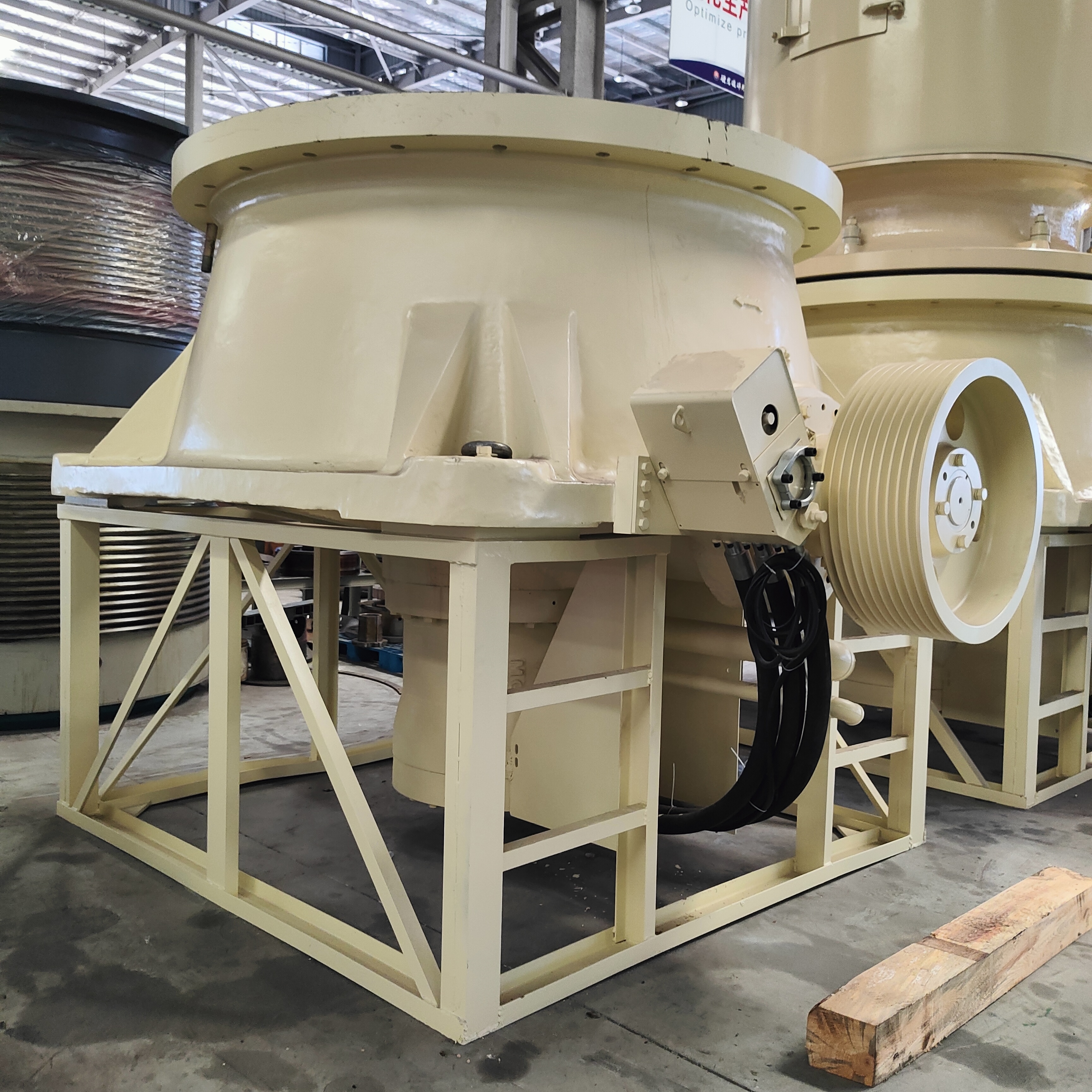

Single Cylinder Hydraulic Cone Crusher Side View

Single Cylinder Hydraulic Cone Crusher Side View

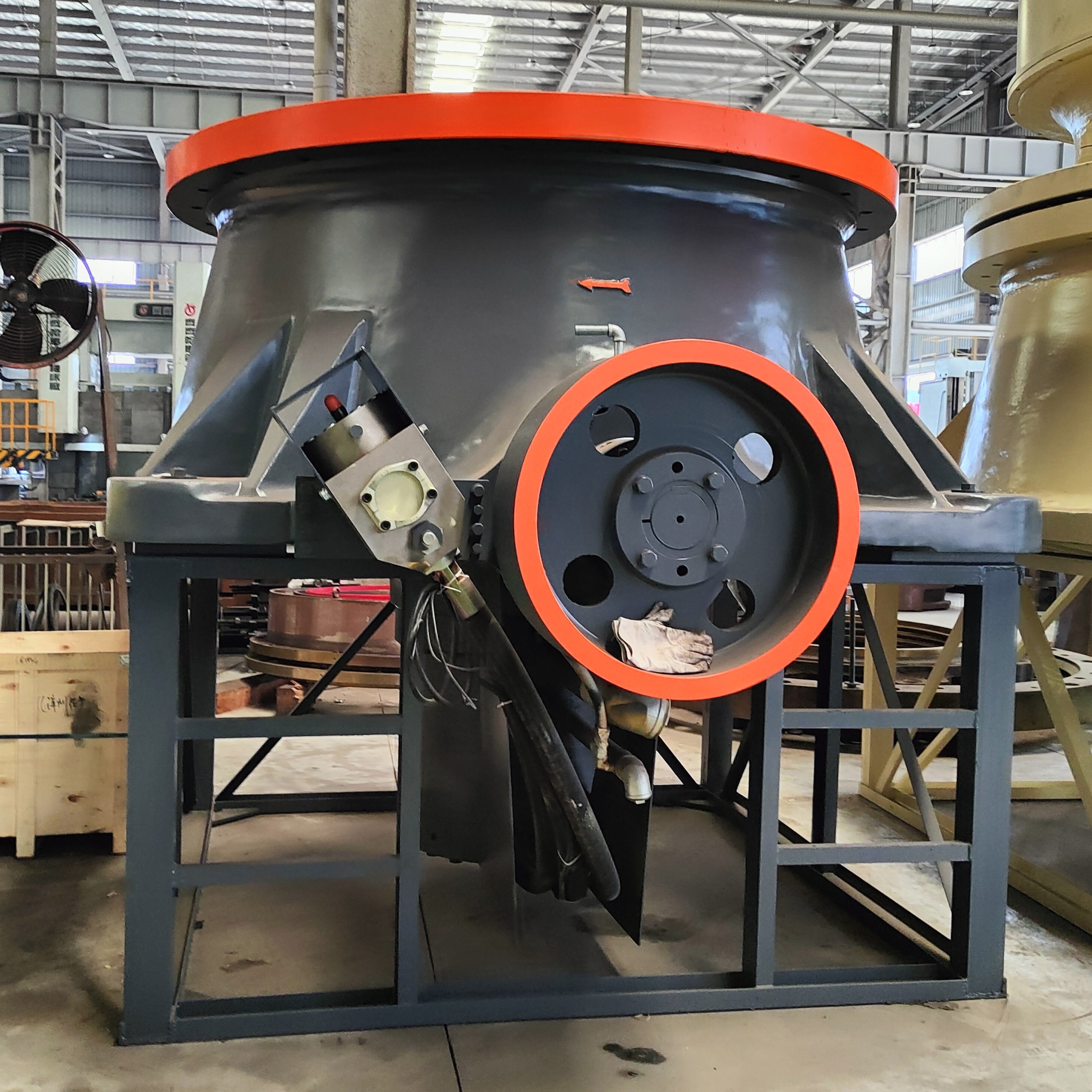

Single Cylinder Hydraulic Cone Crusher Dark Grey

Single Cylinder Hydraulic Cone Crusher Dark Grey

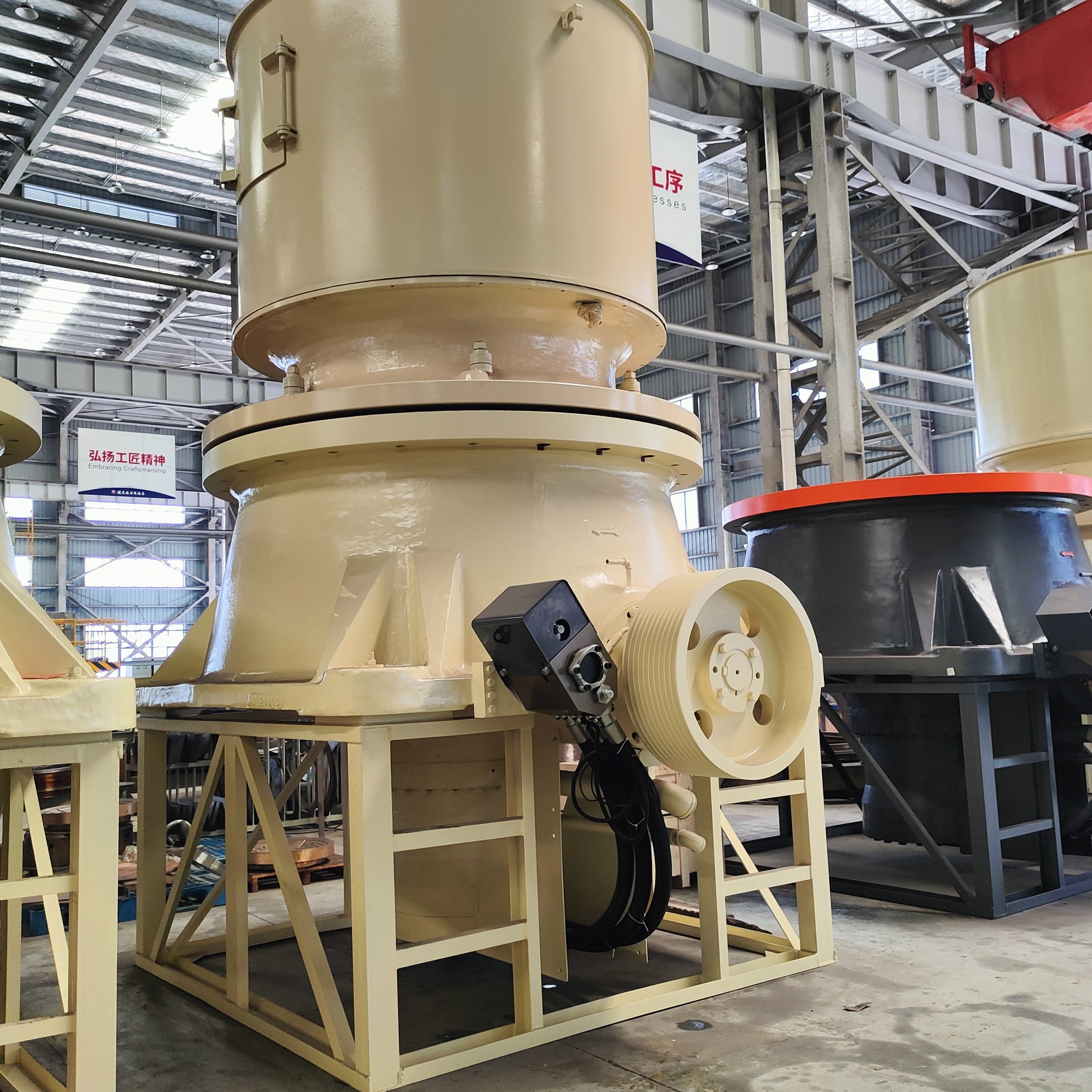

Single Cylinder Hydraulic Cone Crusher

Single Cylinder Hydraulic Cone Crusher
