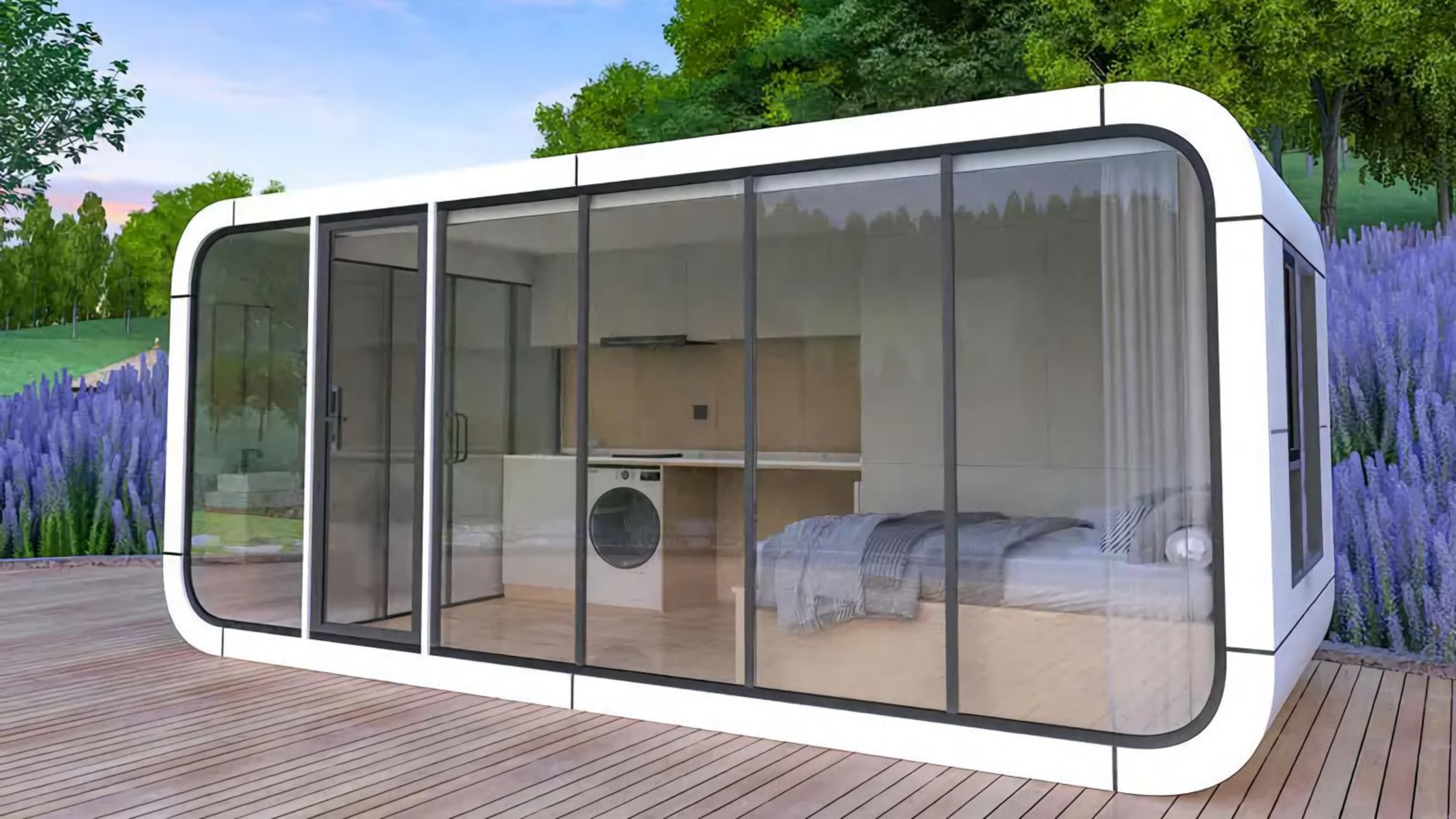

Space Capsule House

Name: "Space Capsule House"
Rating: 5 (75 reviews)

SKU: 1518997317

Model: Customized

XINKANG Modular House

Enter Shop

Product Details

Product Specification

Type	Semi-permanent Steel-Concrete Composite Modular House	Model	Customized
Params	Product Name Space Capsule House / Apple Cabin Standard Outer Size(L×W×H) 8500×3300×3200 mm（Approximately 28 square meters）；11500×3300×3200 mm（Approximately 38 square meters） Total Weight 6‑8 tons / unit Main Frame Hot‑dip galvanized Q235B steel frame Exterior Cladding 2.5 mm aviation aluminum panel, fluorocarbon baking paint Insulation Layer 50‑100 mm PU / rock‑wool insulation Facade Glass 5+12A+5 mm double‑glazed tempered Low‑E glass curtain wall Wind Resistance Grade 12 typhoon Seismic Resistance Grade 8 earthquake Floor Load ≥2.0 kN/㎡；Roof live load ≥0.6 kN/㎡ Floor System MGO fire‑proof board + SPC stone‑plastic flooring Door Aluminum‑alloy entrance door with smart lock Electric System Pre‑wired complete circuit, distribution box, LED ambient lighting；Custom‑made for EU/UK/AU/US voltage Internal Layout Bedroom, integrated dry‑wet bathroom, living area, optional kitchen & terrace Installation Method Factory fully pre‑finished; hoist in‑place, plug‑and‑play after water & power connection Design Service Life 50 years；Service life ≥20 years under normal maintenance Shipping 1 set per 40HQ / 40FR container	Material	Main load‑bearing frame Hot‑dip galvanized Q235B steel frame Exterior shell cladding 2.5 mm aviation‑grade aluminum panel, fluorocarbon baking paint finish Wall & roof insulation 50‑100 mm PU polyurethane / rock‑wool insulation Facade glass curtain wall 5+12A+5 mm double‑glazed tempered Low‑E insulating glass Floor base board MGO magnesium‑oxide fireproof board Floor finishing SPC stone‑plastic flooring Entrance door Aluminum‑alloy door with intelligent lock Interior ceiling & wall Environmental‑protection integrated aluminum decorative panels Bathroom Integrated wet‑dry separation sanitary ware set
Applicable Industry	Glamping resort & scenic homestay Tourist campsite, mountain & island tourism project Boutique hotel room, vacation suite Park service station, tourist lounge Commercial pop‑up shop, café, exhibition booth Mobile office, reception pod Rural revitalization characteristic accommodation Remote‑area temporary accommodation

Feature

1. Fully factory pre‑fabricated, plug‑and‑play. Only hoisting and connecting water & power on site, greatly shorten project cycle. 2,Aviation‑grade aluminum outer shell with fluorocarbon baking paint, UV‑resistant, anti‑fading, excellent outdoor weather resistance. 3. Panoramic Low‑E double‑glazed glass curtain wall, good daylighting and sightseeing view, modern futuristic appearance. 4. High‑density PU / rock‑wool insulation layer, adapt to wide temperature range from ‑30℃ to +50℃, heat insulation & sound insulation performance reliable. 5. High‑strength hot‑dip galvanized steel main frame, wind‑resistant Grade 12, seismic‑resistant Grade 8, long service life. 6. Low foundation requirement, flat ground is enough; no heavy civil construction work needed. 7. Complete interior finished, equipped with integrated dry‑wet separated bathroom, lighting and electric system. Support smart lock and intelligent control customization. 8. Flexible customization on dimension, terrace, layout, exterior color and electrical standards for different countries. 9. Easy relocation, can be hoisted and moved to another site without destroying the building itself.

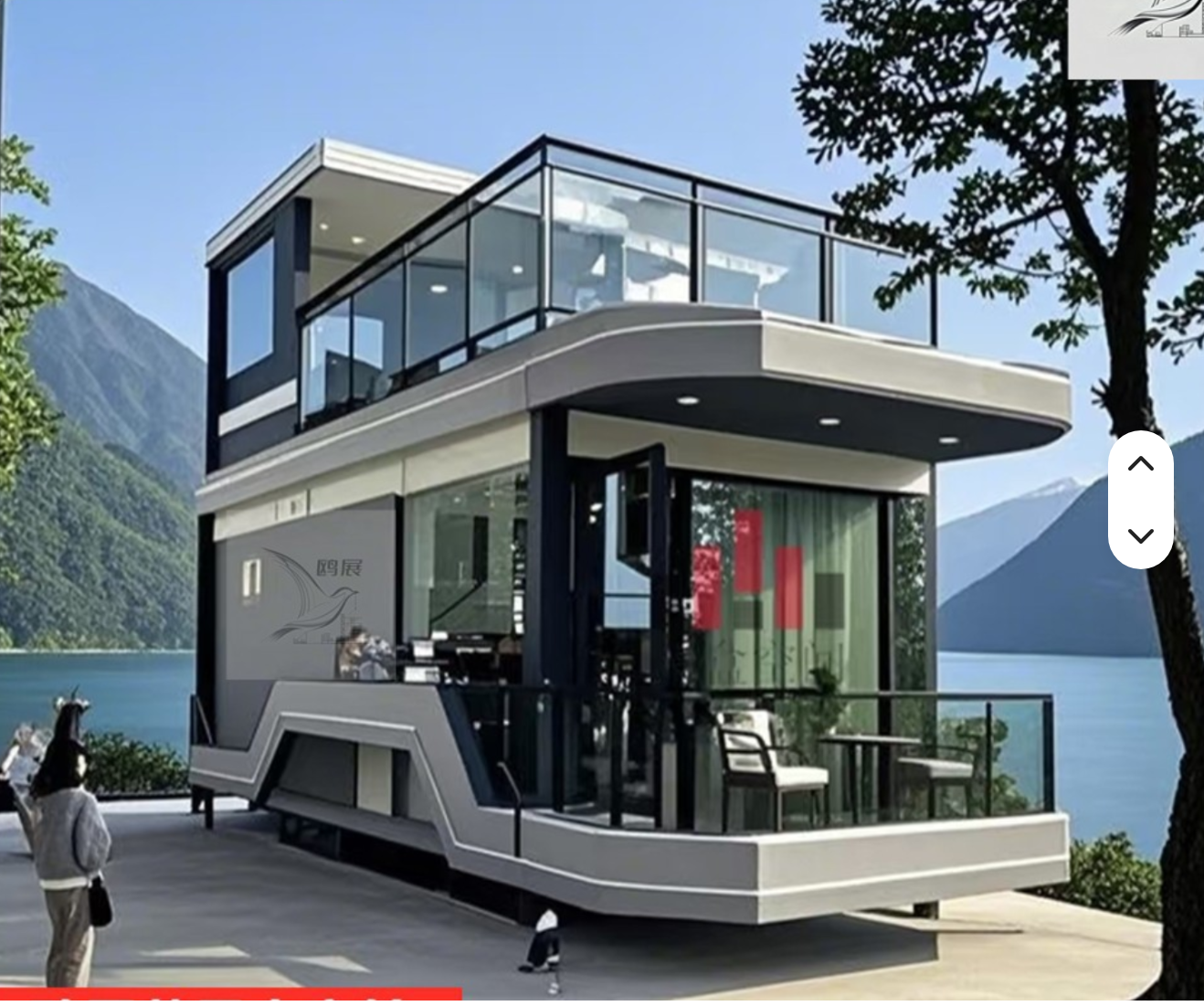

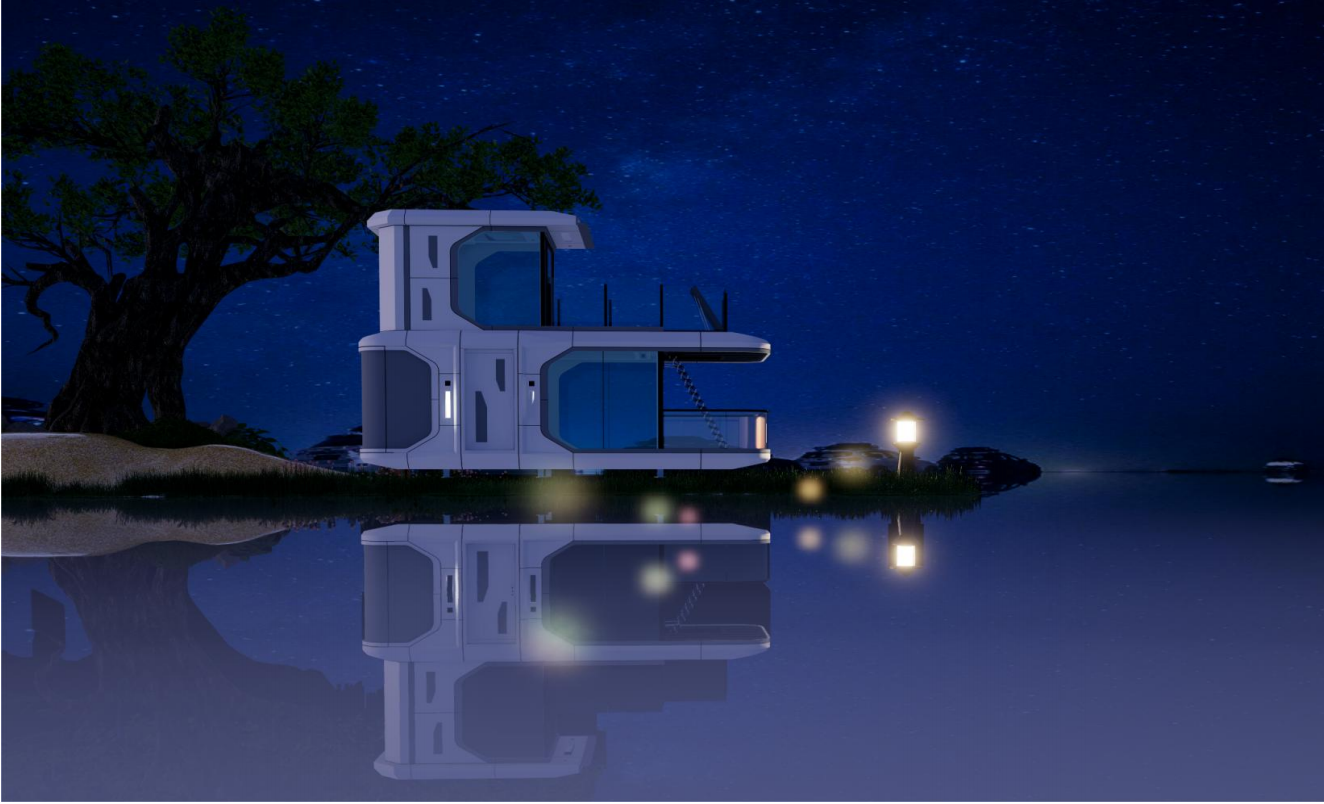

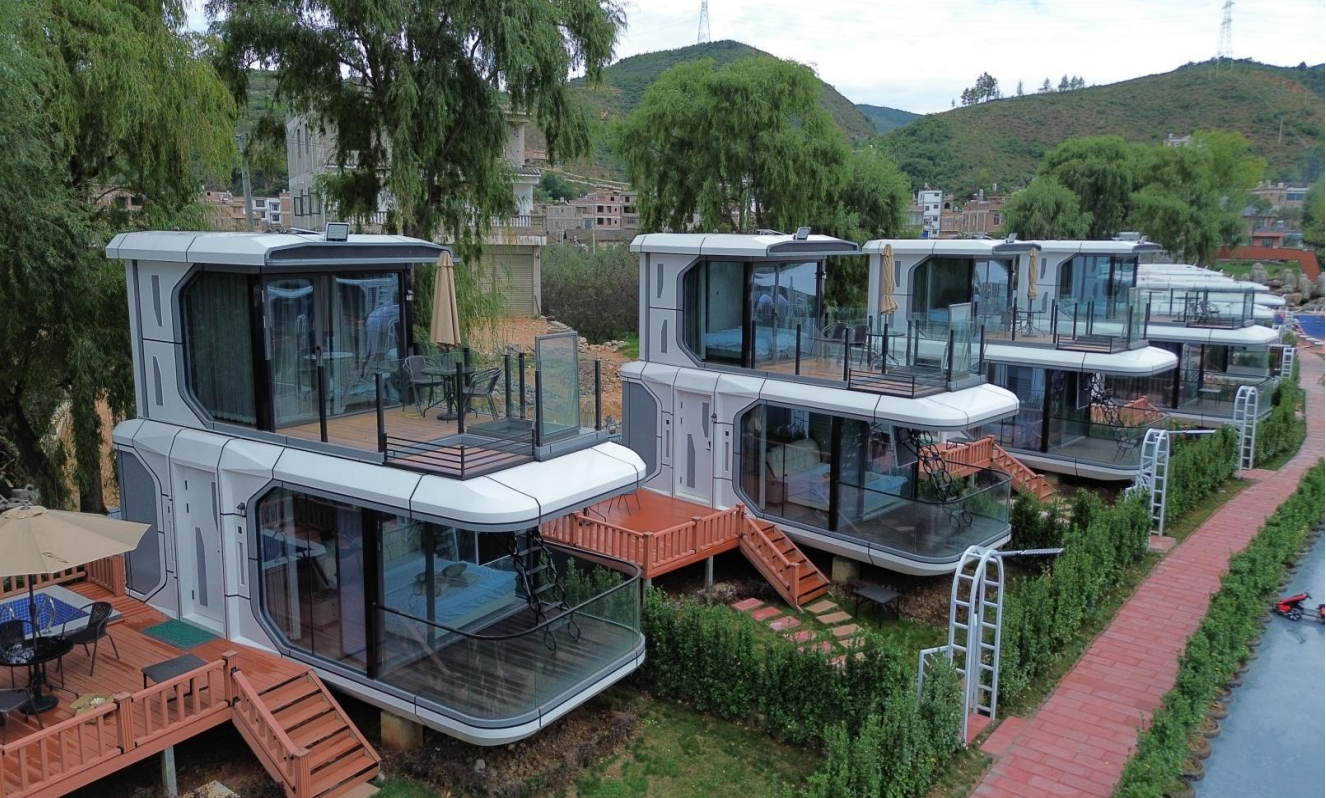

wo‑Story Space Capsule House

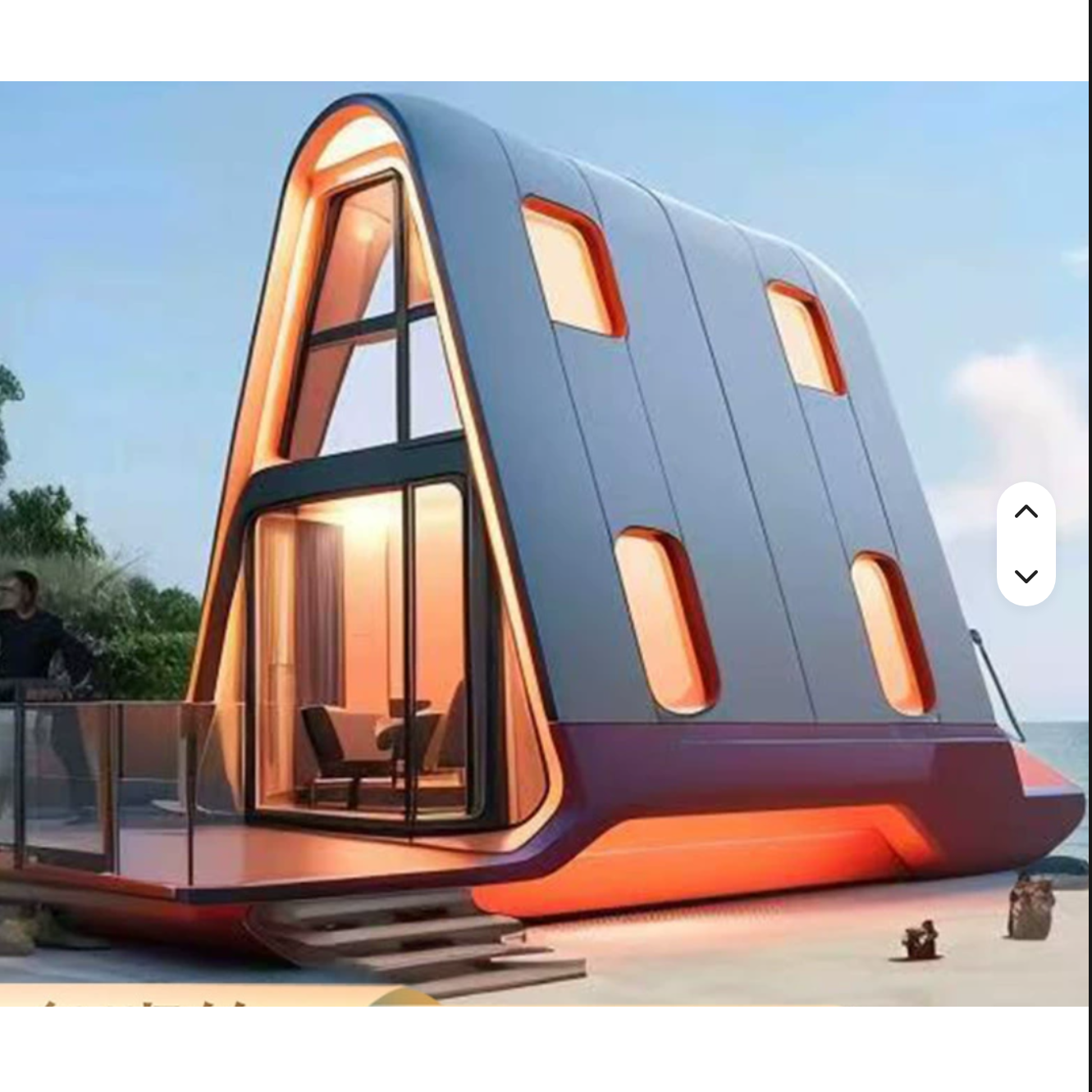

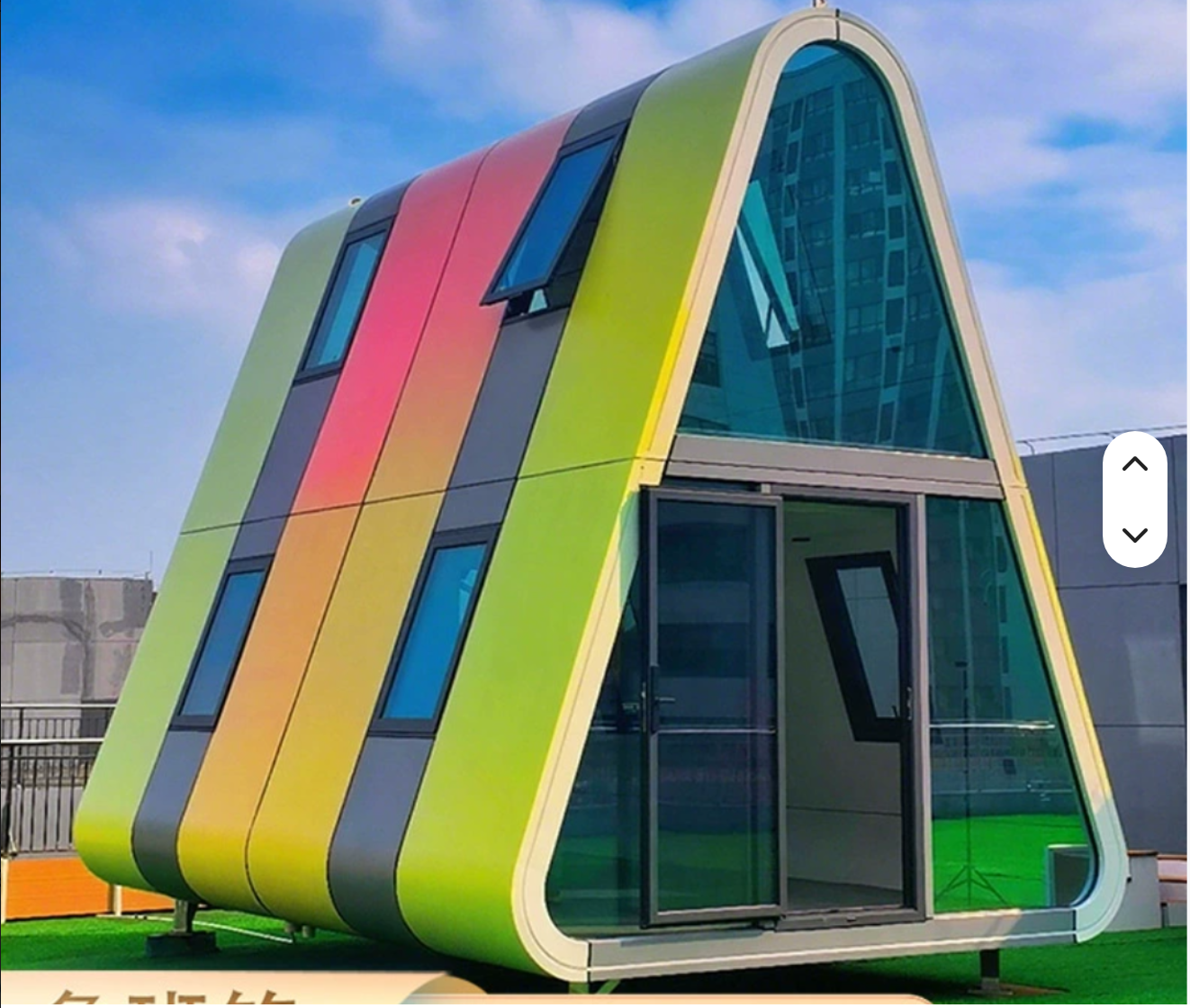

Triangular Space Capsule Hous

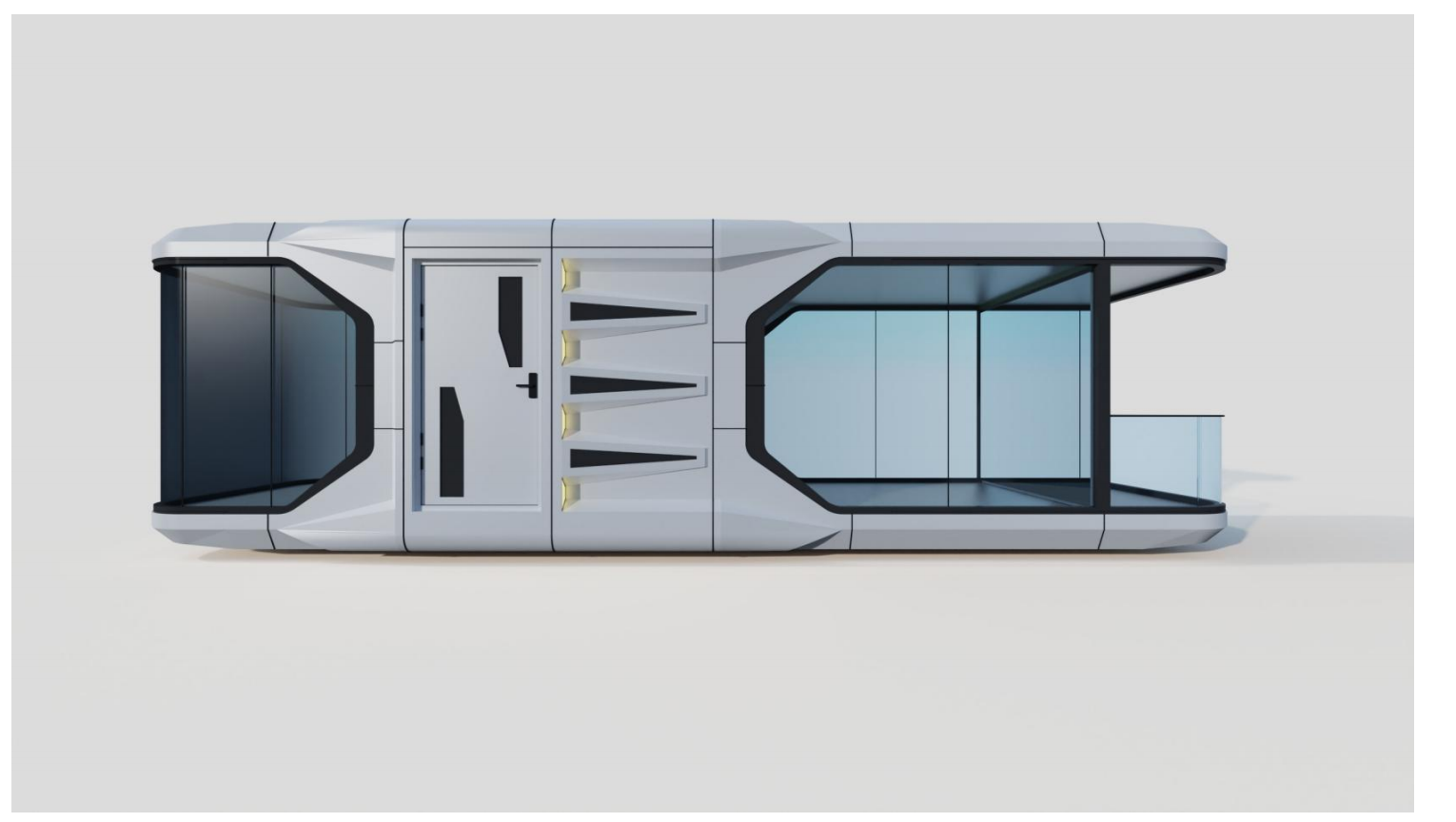

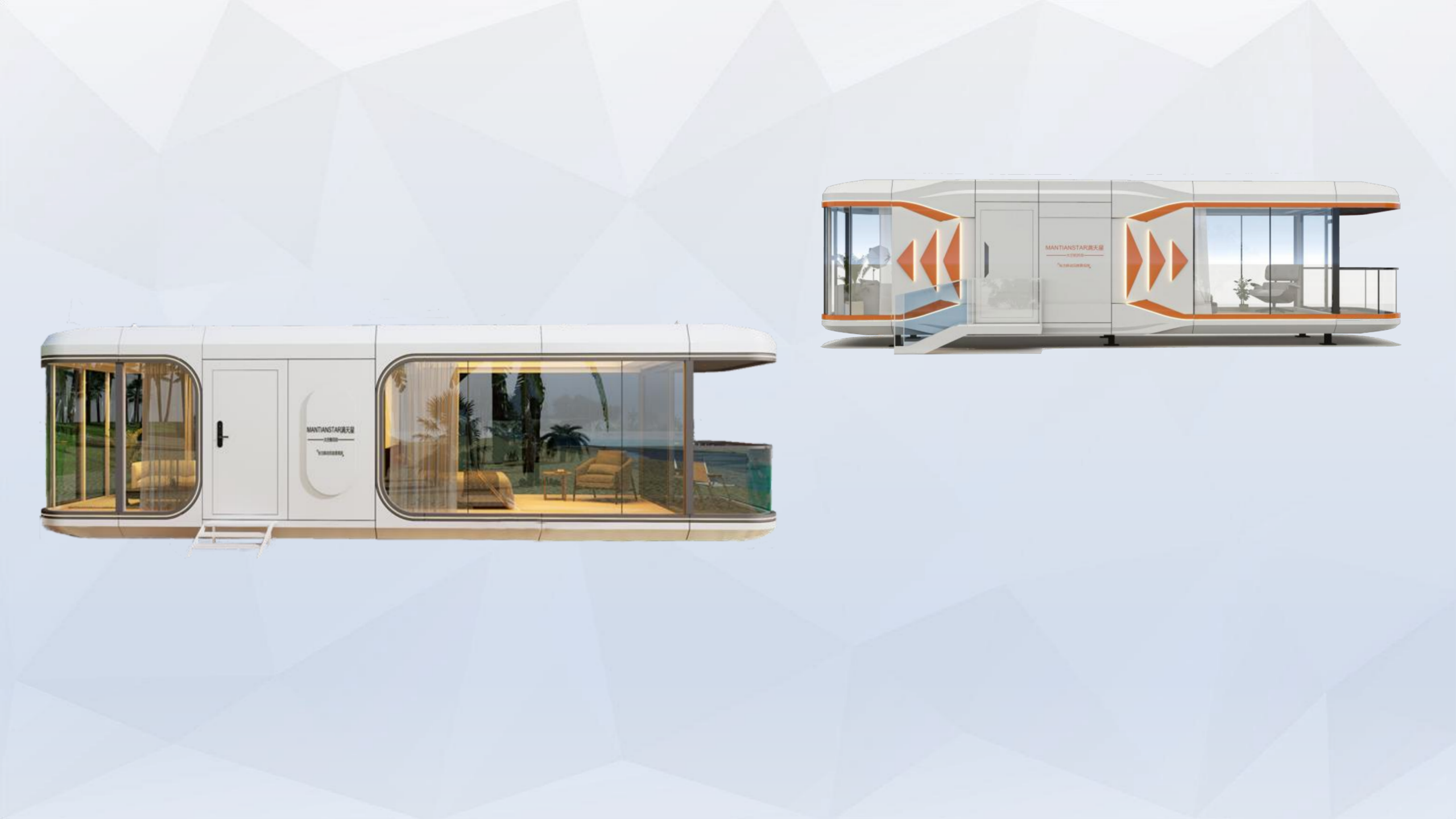

Space Capsule House

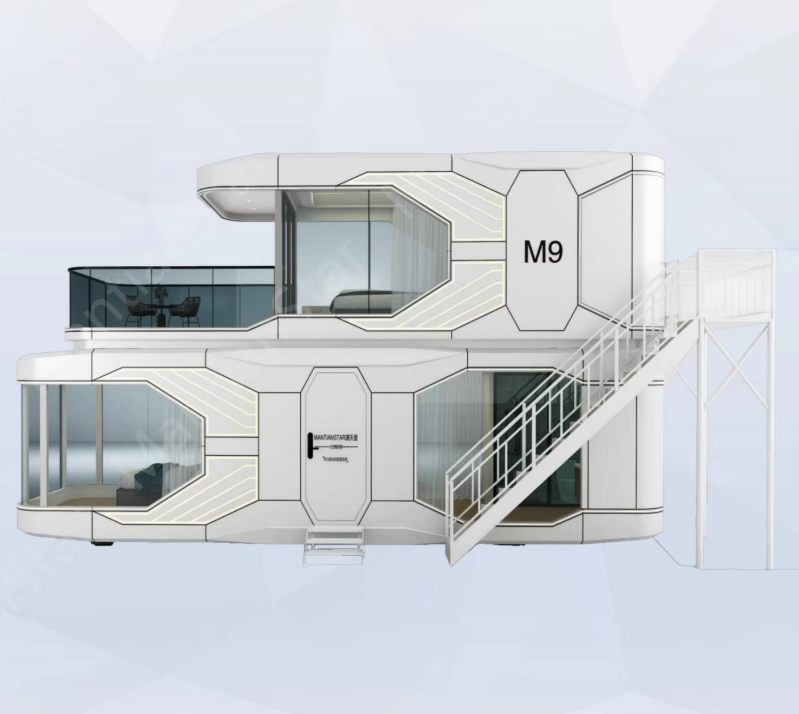

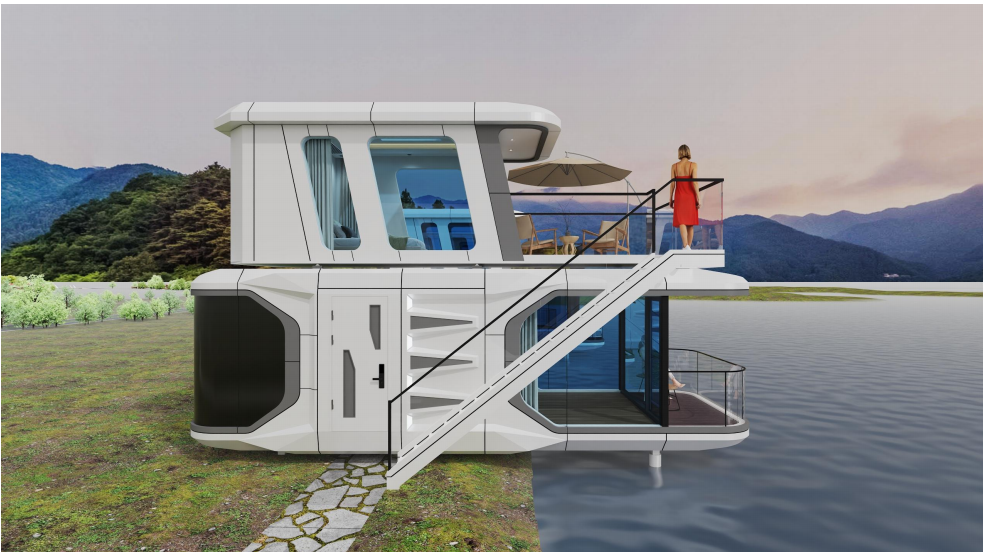

wo‑Story Space Capsule House

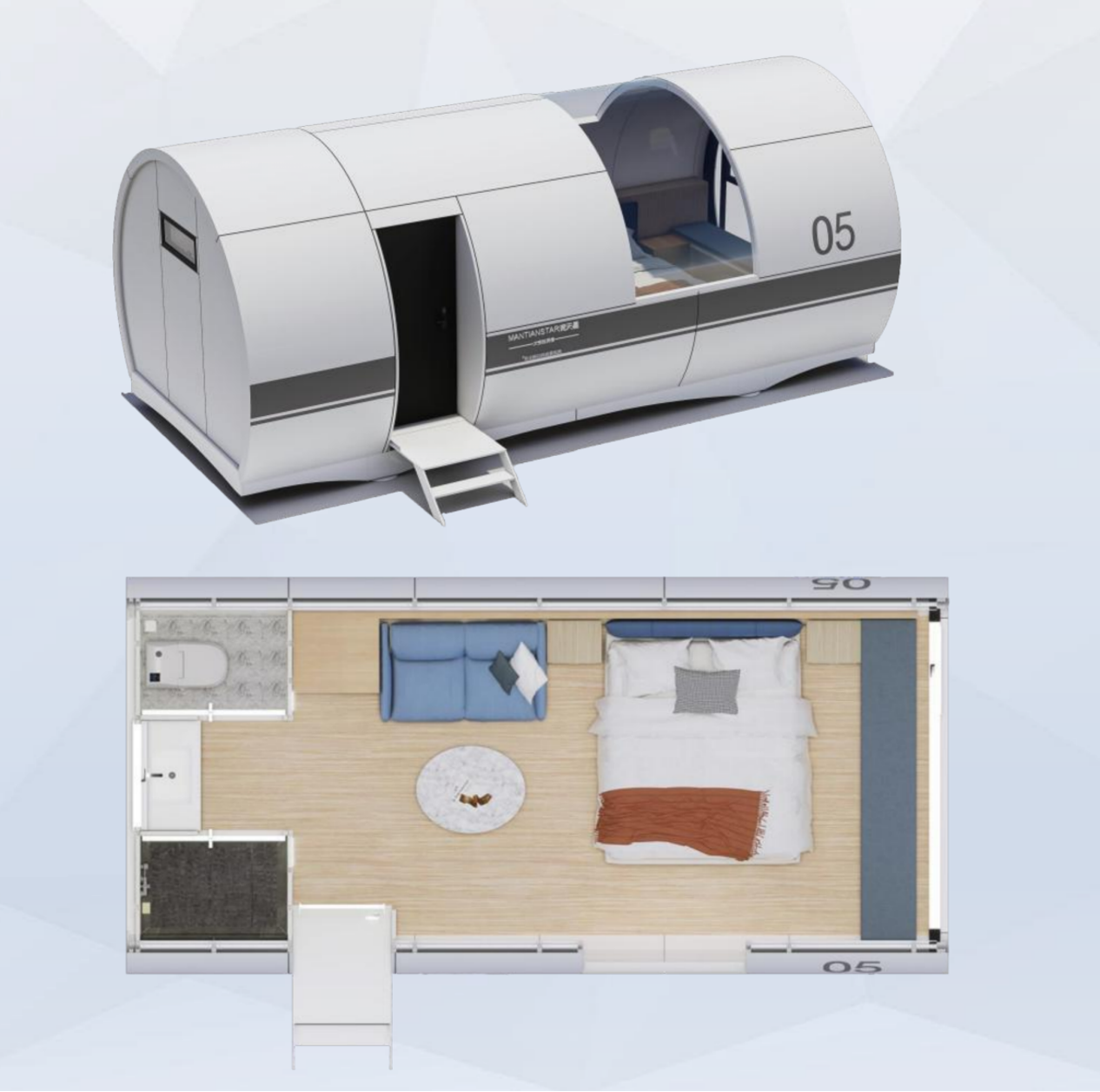

Space Capsule House

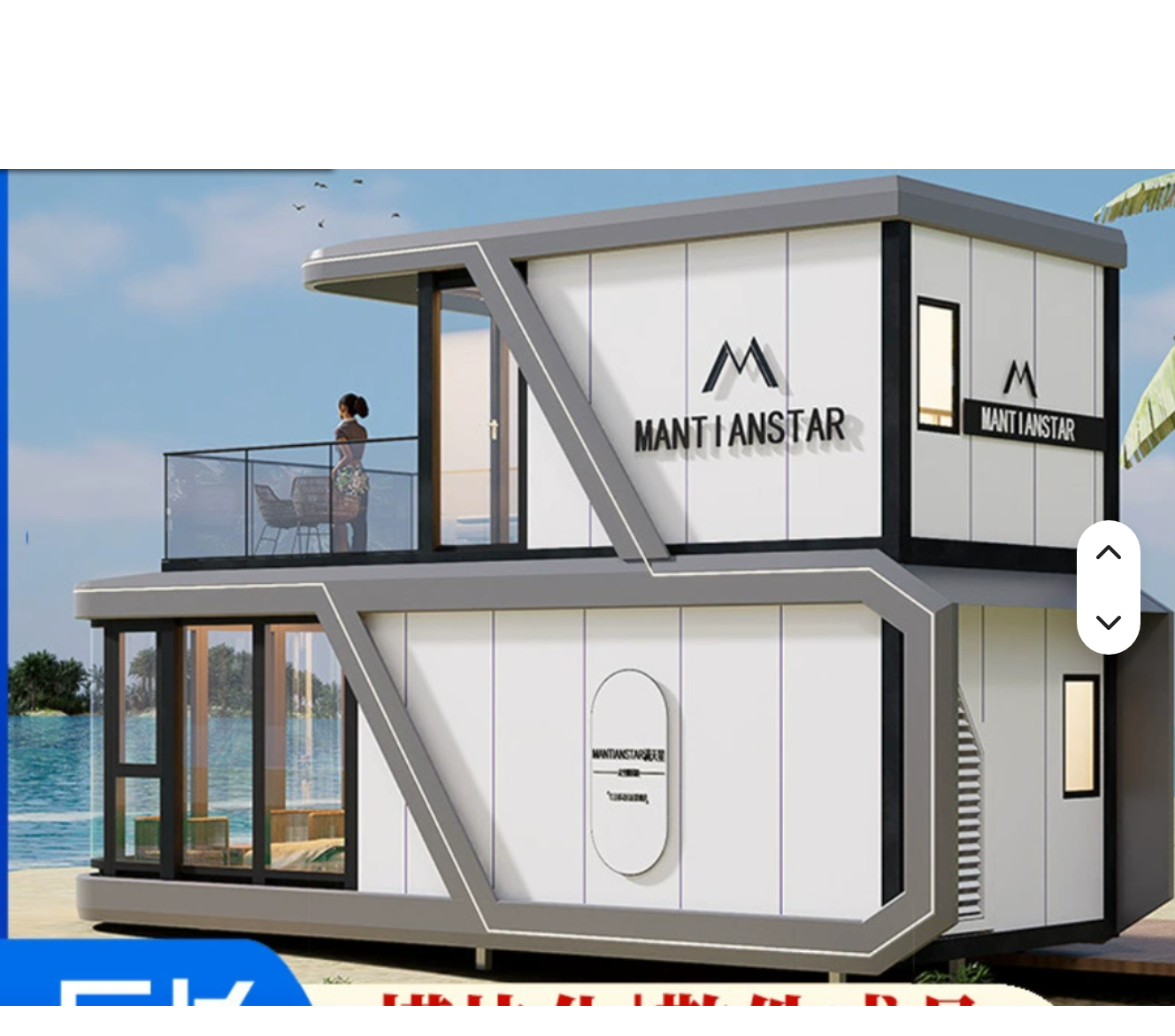

wo‑Story Space Capsule House

Space Capsule House

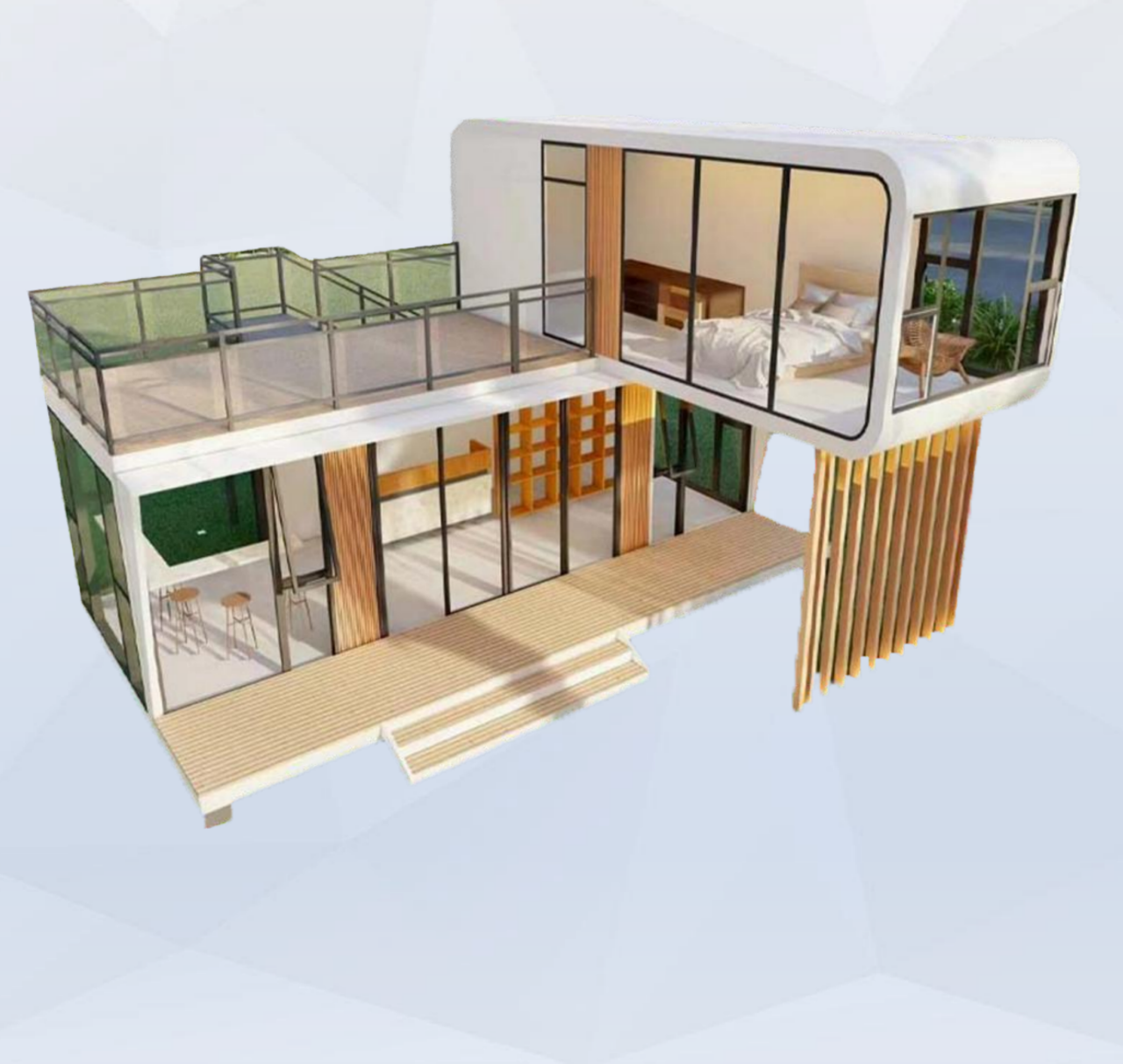

wo‑Story Space Capsule House

Houseboat‑Style Space Capsule Hous

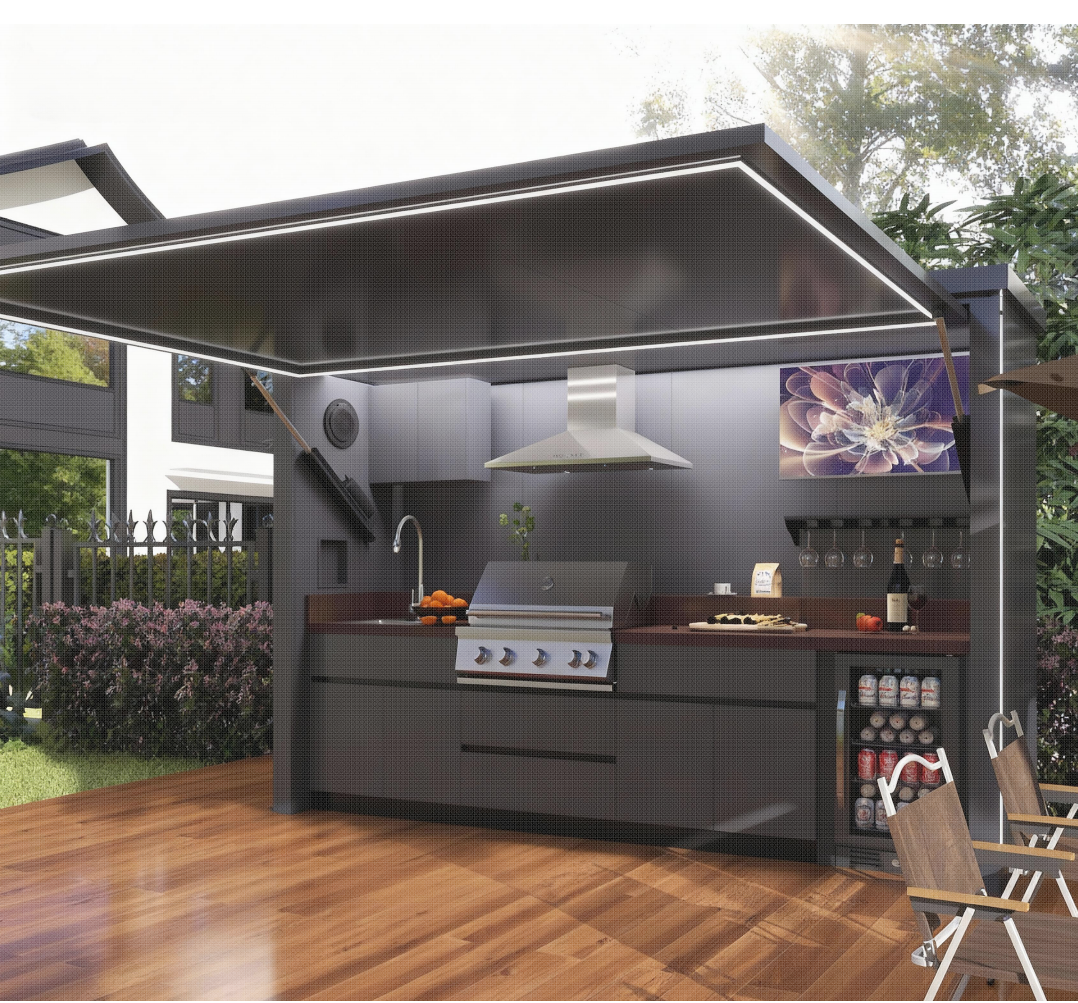

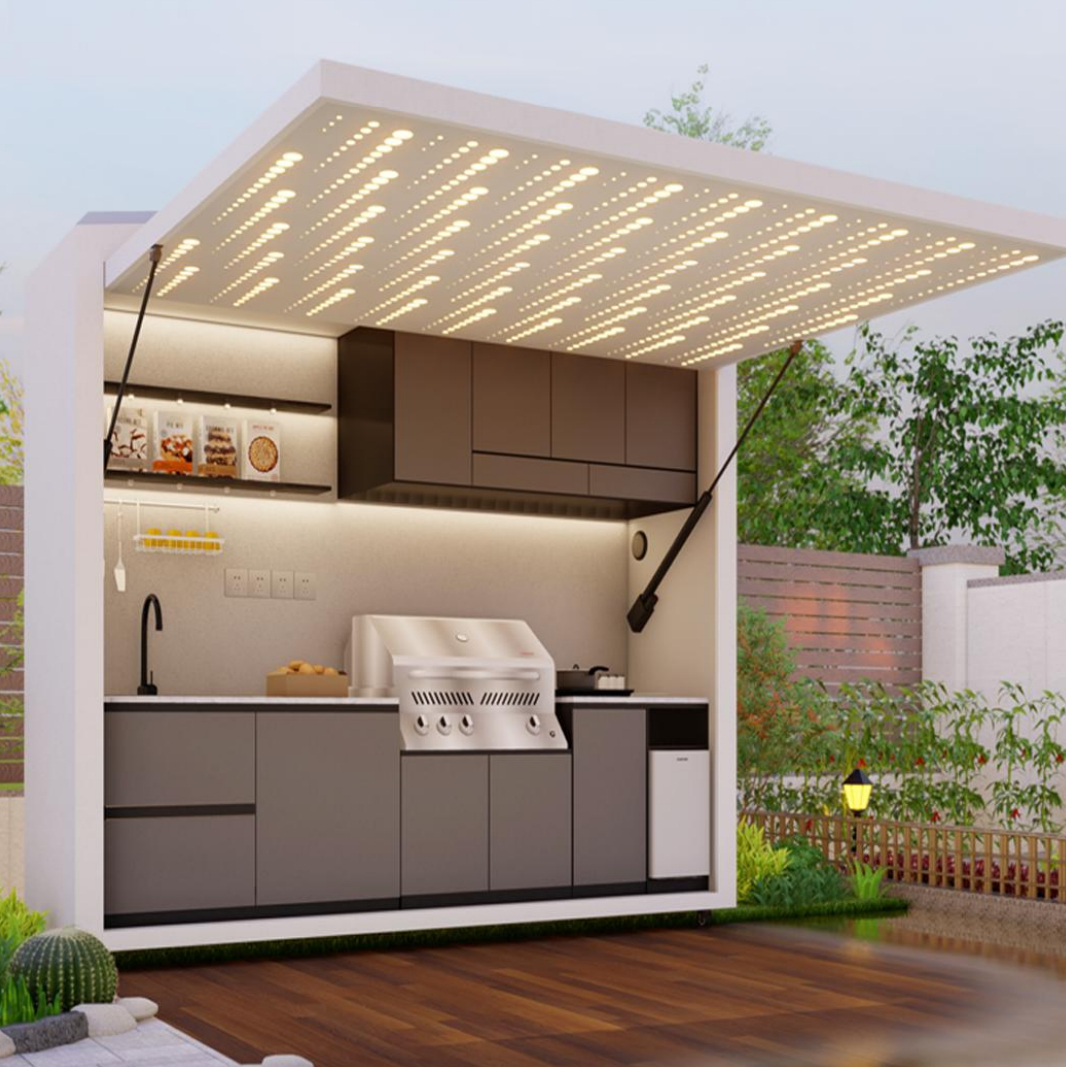

Outdoor Kitchen
