Vibrating Screen

Quantity:
SKU: 5391914981
Model: Customized-J-02

{{ variable.name }}

{{ value.name }}

Product Specification

TypeCircular Vibrating Screen for Mining and QuarriesModelCustomized-J-02
ParamsCapacity: 30–800 t/h Screen Surface Size: 1500×5000 mm – 3300×8000 mm Max Feed Size: 200 – 300 mm Vibration Frequency: 13–16.2 Hz Power: 15 – 90 kW (15 kW to 45×2 kW) Decks: 2 – 4 decks Equipment Weight: 4.5–33 tons Overall Dimensions (L×W×H): 5580×2220×1200 – 9082×4260×2130 mmMaterialHigh-strength structural steel plate (or A572 Grade 50 per ASTM)
Applicable IndustryMining / Quarrying / Aggregates / Coal Washing / Building Materials

Feature

Good adjustability of vibration amplitude Innovative and durable structure Strong excitation force and high processing capability Convenient and simple maintenance Reliable operation, reducing total downtime

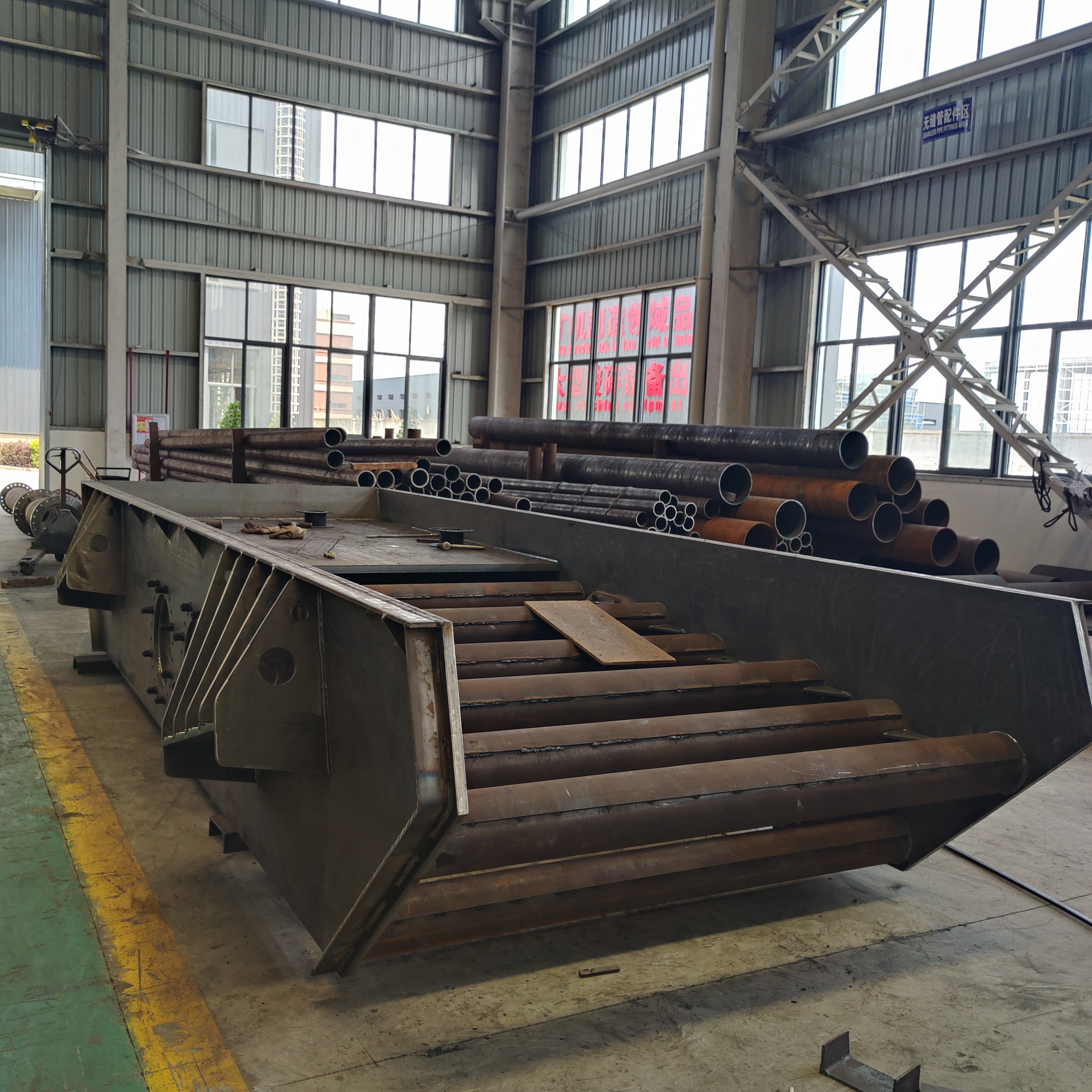

Vibrating-Screen-Frame-Weldment-Structure

Vibrating-Screen-Frame-Weldment-Structure

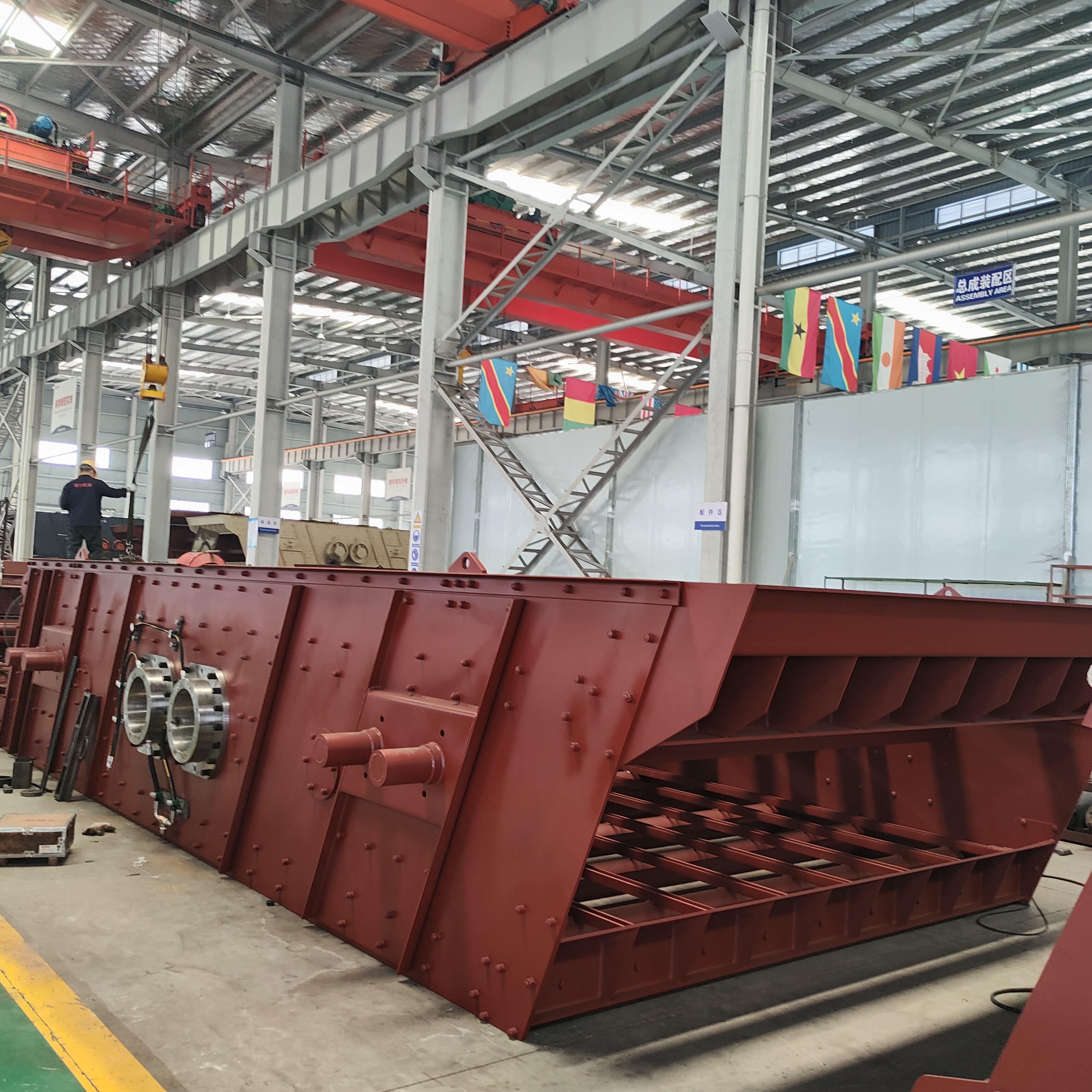

Vibrating-Screen-Body-View

Vibrating-Screen-Body-View

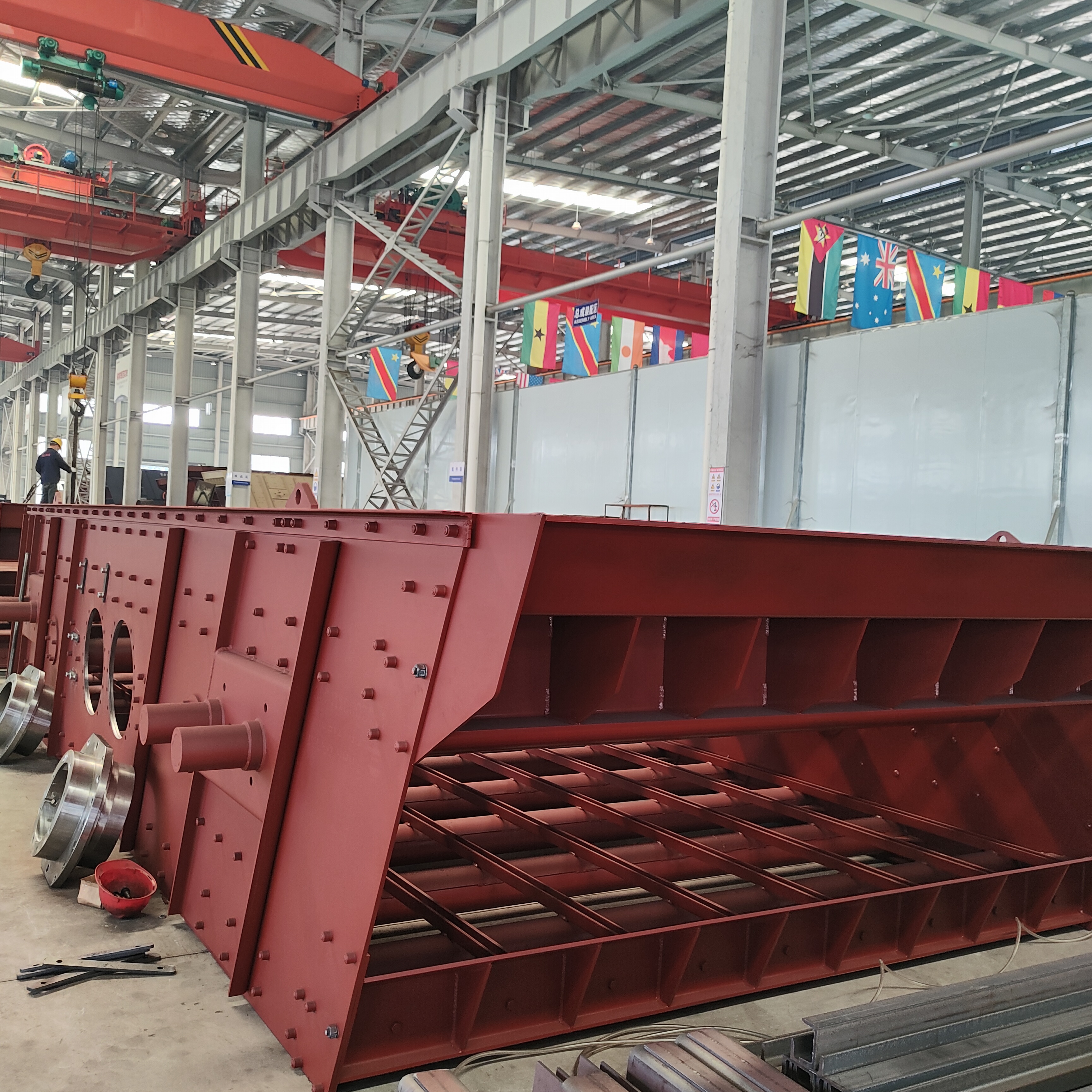

Custom-Vibrating-Screen-Fabrication

Custom-Vibrating-Screen-Fabrication

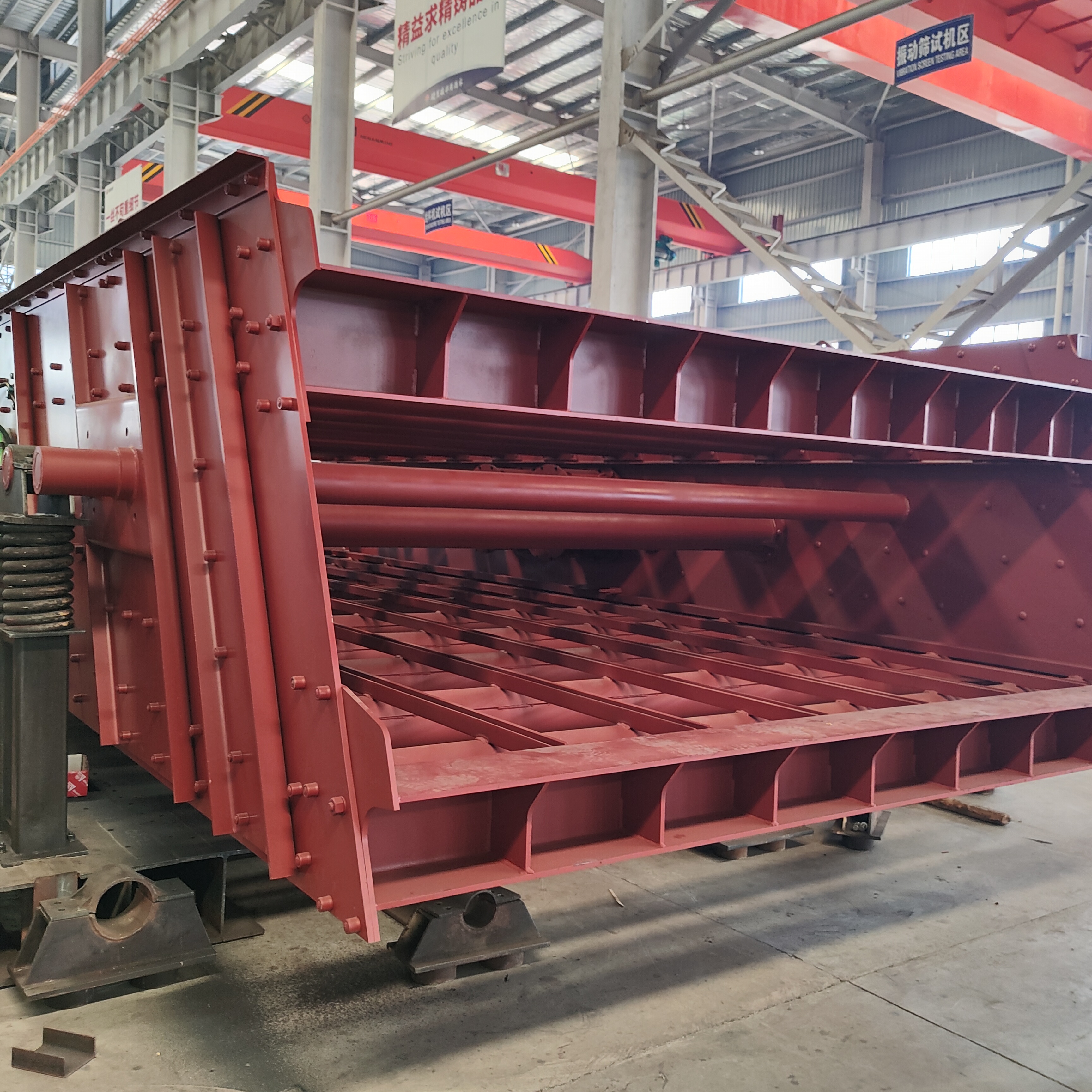

Vibrating-Screen-Deck-Frame-Structure

Vibrating-Screen-Deck-Frame-Structure

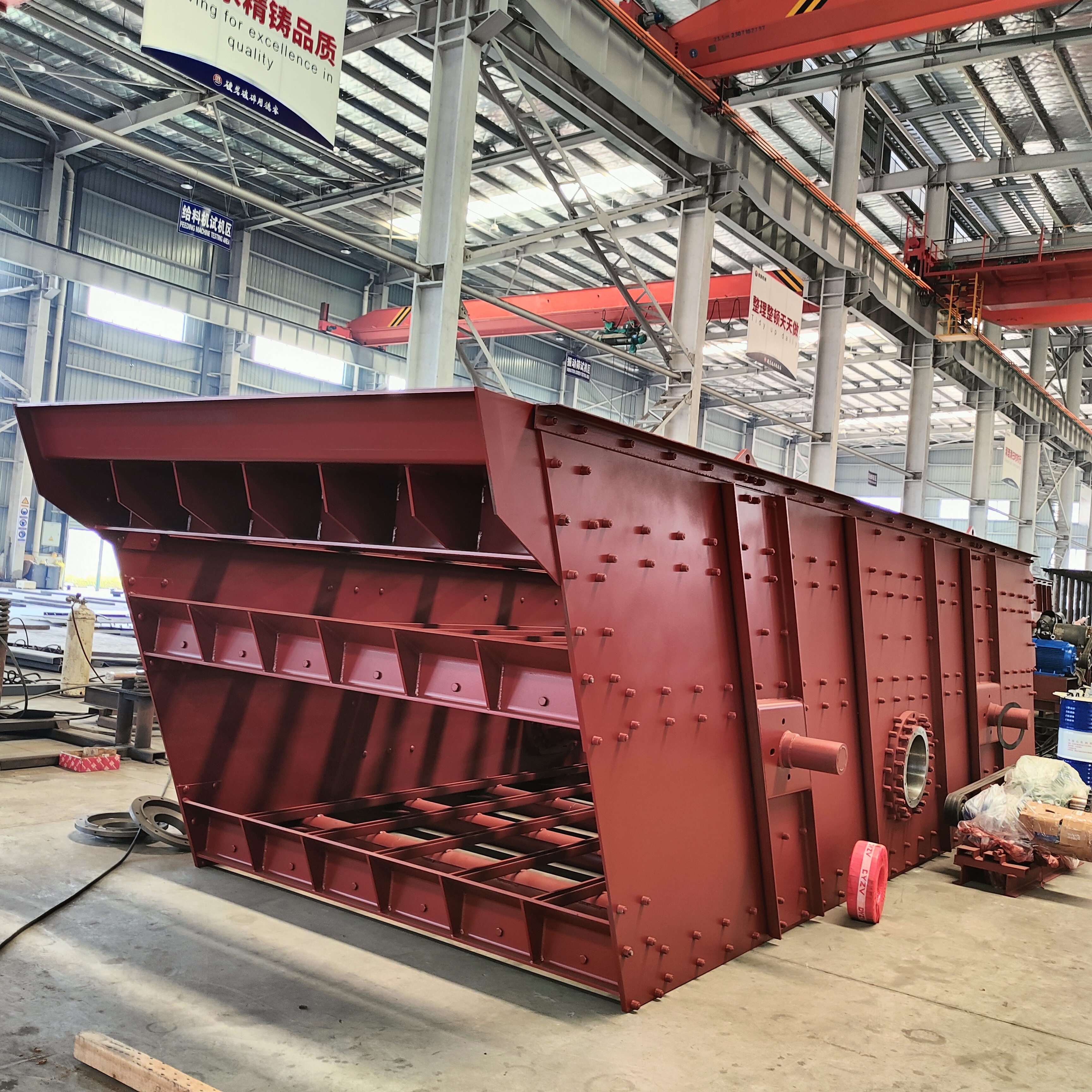

Vibrating-Screen-Body-Structure

Vibrating-Screen-Body-Structure

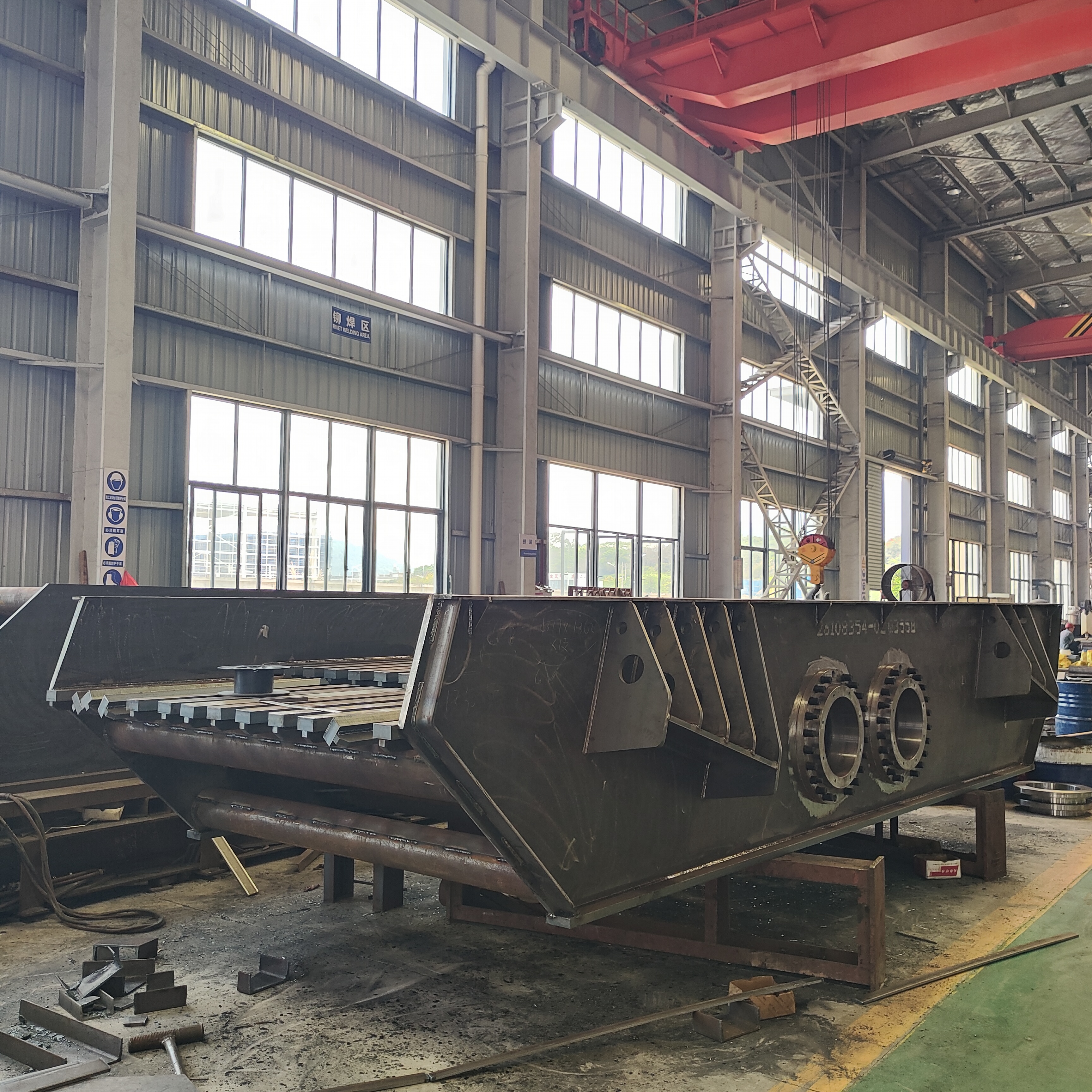

Vibrating Screen Frame

Vibrating Screen Frame

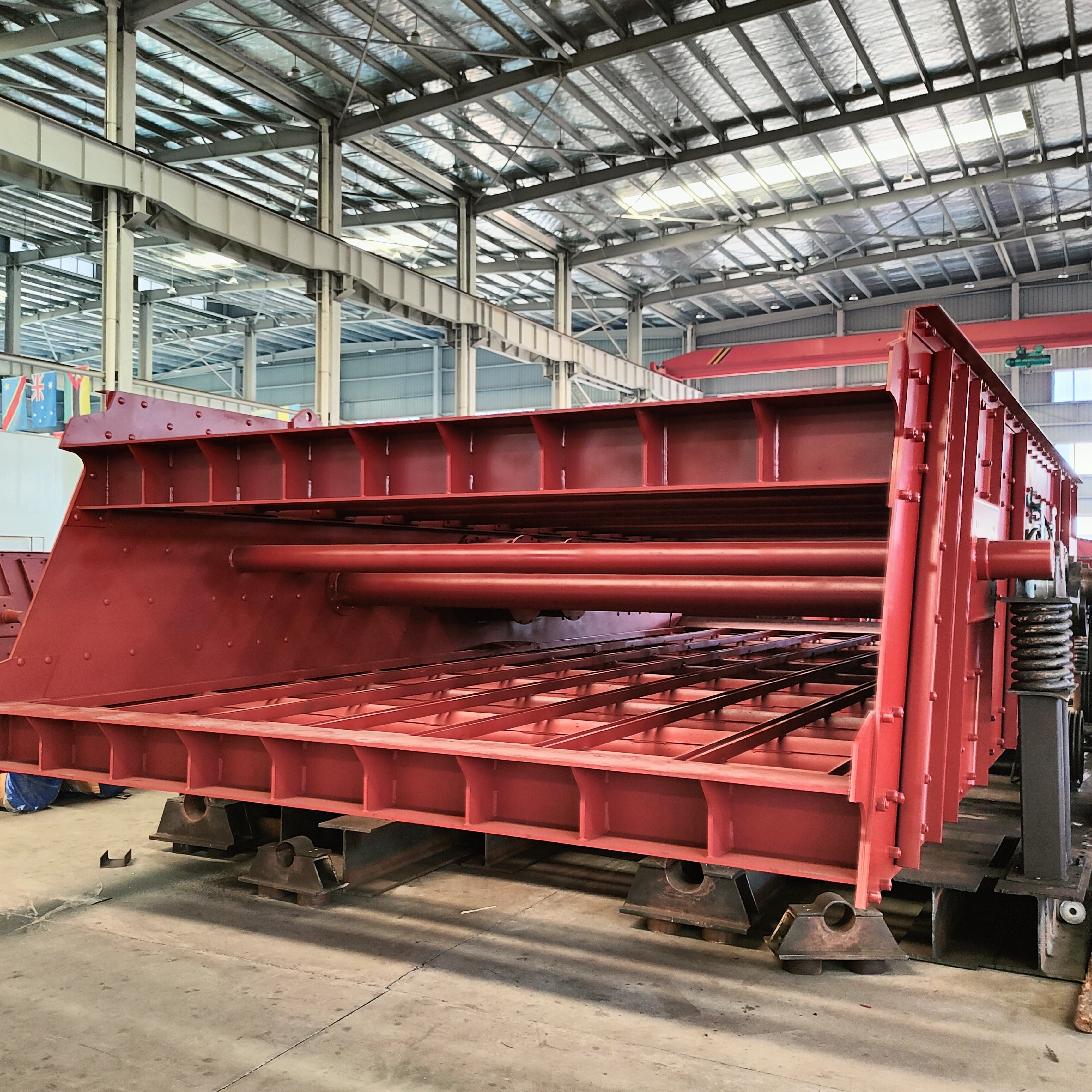

Multi-Deck-Vibrating-Screen-Box-Front-View

Multi-Deck-Vibrating-Screen-Box-Front-View
