large welded press frame

Quantity:
SKU: 7780876306
Model: Custom-L-3

{{ variable.name }}

{{ value.name }}

Product Specification

TypeH-frame / straight-side press structureModelCustom-L-3
ParamsTypical reference configuration - subject to FEA: Reference press force: 10,000-20,000 kN Clear opening: approx. 2,500 x 1,800 mm Main plate: 60-120 mm Envelope: approx. 6,000 x 4,000 x 8,000 mm Estimated mass: 80-140 tMaterialASTM A572 Grade 50 / EN S355J2+N / Q355B
Applicable IndustryAutomotive Manufacturing/ Aerospace & Defense/ Heavy Machinery & Agricultural Equipment/ General Metal Stamping & Tooling适用设备/下游应用Hydraulic Press / Forging Press / Metal Forming Line
Reference note / sourceEngineered example; press force and frame dimensions require FEA and fatigue assessment. Source: https://aptgroup.com/solutions/lines-products/hydraulic-presses/oden-multi-purpose-presses

Feature

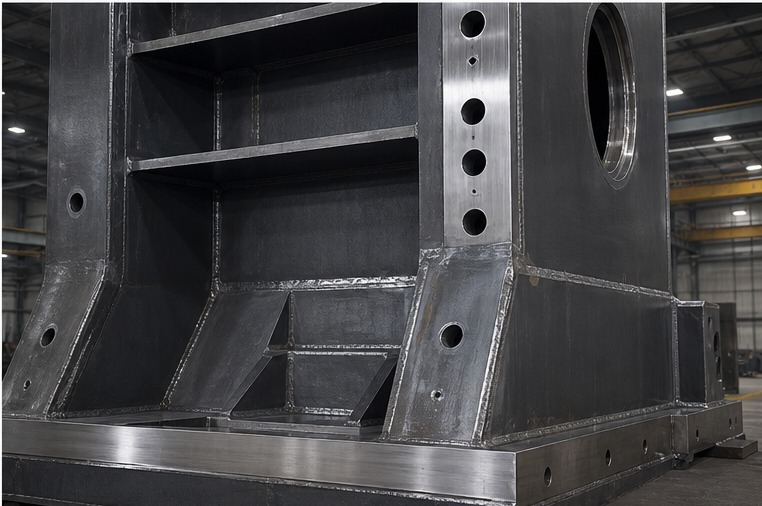

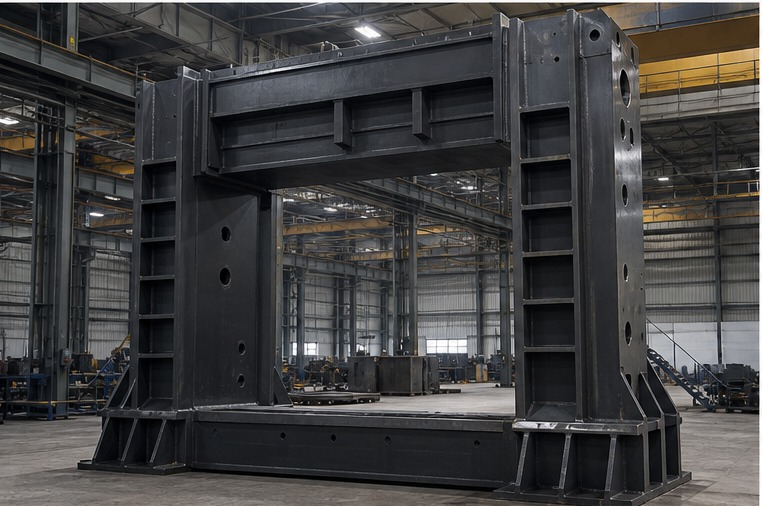

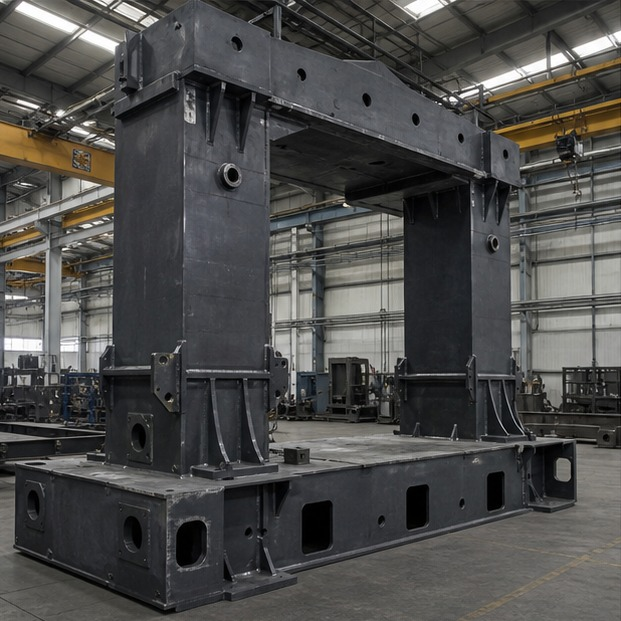

Large welded frame with reinforced columns, crown and machined bed interfaces.
